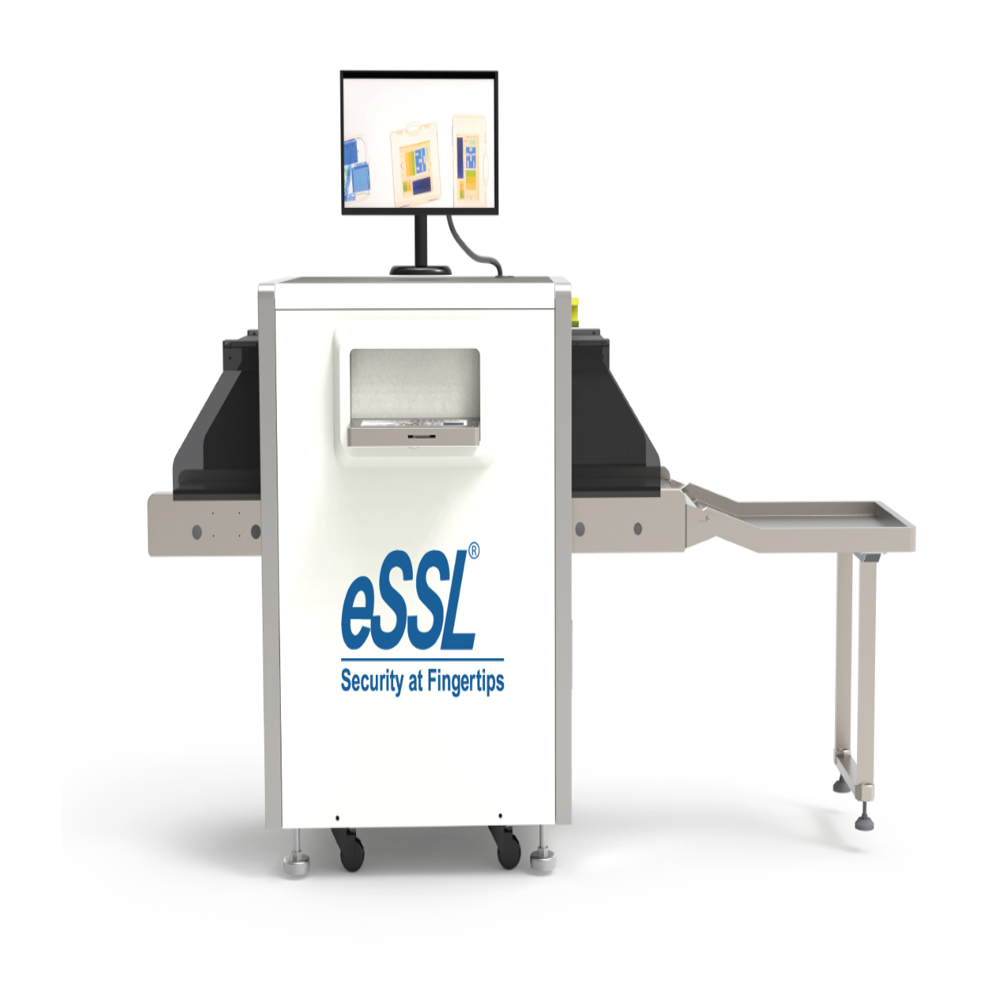

eSSL eBS-5030A Single Energy X-Ray Baggage Scanner

The eSSL eBS-5030A Single Energy X-Ray Baggage Scanner is a high-performance security screening solution designed to inspect baggage and detect prohibited or dangerous items in airports, railway stations, government buildings, corporate offices, shopping malls, educational institutions, hotels, hospitals, logistics hubs, and other high-security facilities. Using advanced Single-Energy X-ray imaging technology with an L-shaped photodiode array detector, the scanner generates clear, high-resolution images that enable operators to identify weapons, explosives, and other suspicious objects without opening baggage. Its intelligent image processing functions, including color differentiation, organic and inorganic material separation, edge enhancement, high penetration, image inversion, zoom, replay, and brightness adjustment, improve inspection accuracy and operator efficiency.

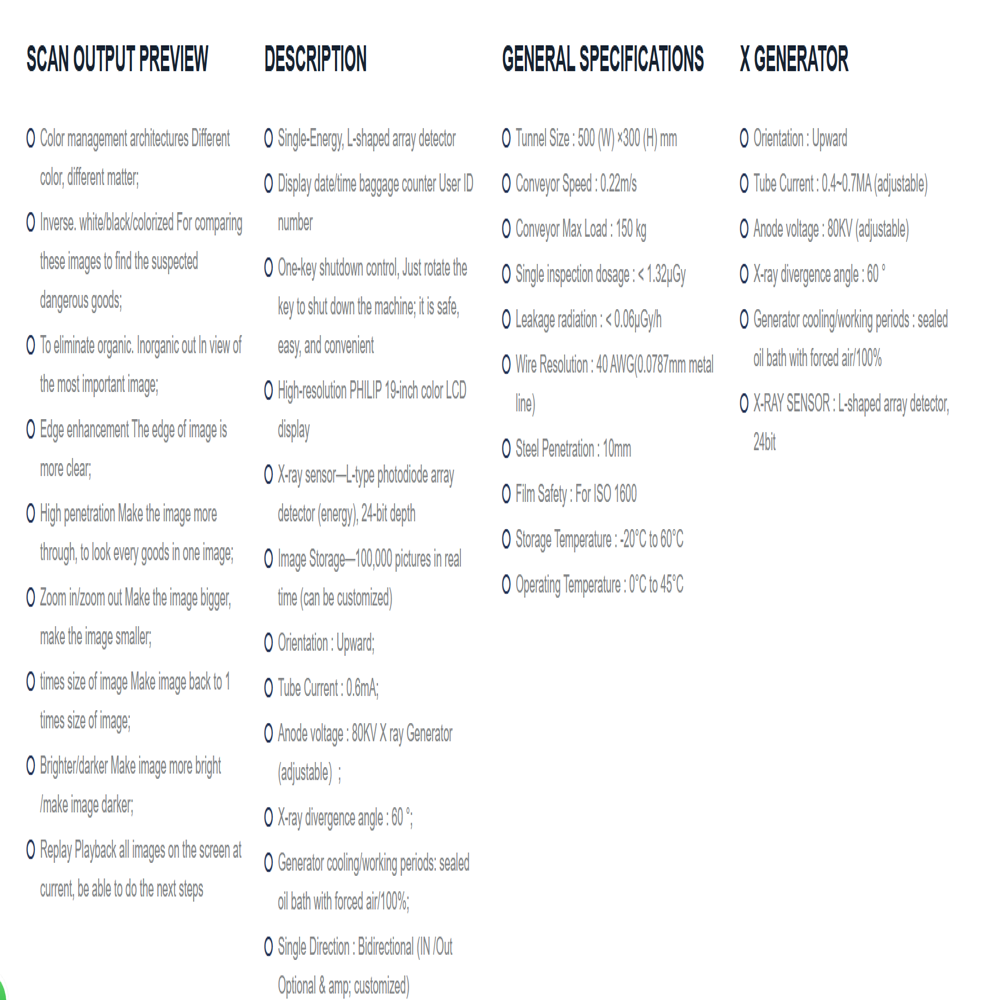

The eSSL eBS-5030A features a 500 300 mm tunnel size with a conveyor speed of 0.22 m/s and supports baggage weighing up to 150 kg. It is equipped with a high-resolution 19-inch PHILIPS color LCD monitor, a 24-bit X-ray sensor, and storage for up to 100,000 images, with expandable capacity on request. The system offers 10 mm steel penetration, 40 AWG wire resolution, ISO 1600 film safety, and leakage radiation below 0.06 Gy/h for safe and reliable operation. Additional features such as LAN connectivity, Eagle Eye magnification, self-diagnosis, one-key shutdown, bidirectional conveyor operation (optional), Windows-based operating system, and automatic X-ray control make it an ideal solution for modern security screening. Built for continuous operation with a sealed oil-cooled X-ray generator and IP-ready networking, the eSSL eBS-5030A delivers dependable baggage inspection in demanding environments.

FAQs

Q1. What types of facilities is the eSSL eBS-5030A suitable for?

A. It is ideal for airports, railway stations, government offices, hotels, shopping malls, educational institutions, hospitals, corporate offices, logistics centers, and other high-security locations.

Q2. What is the maximum baggage size and weight supported?

A. The scanner features a tunnel size of 500 300 mm and supports baggage weighing up to 150 kg.

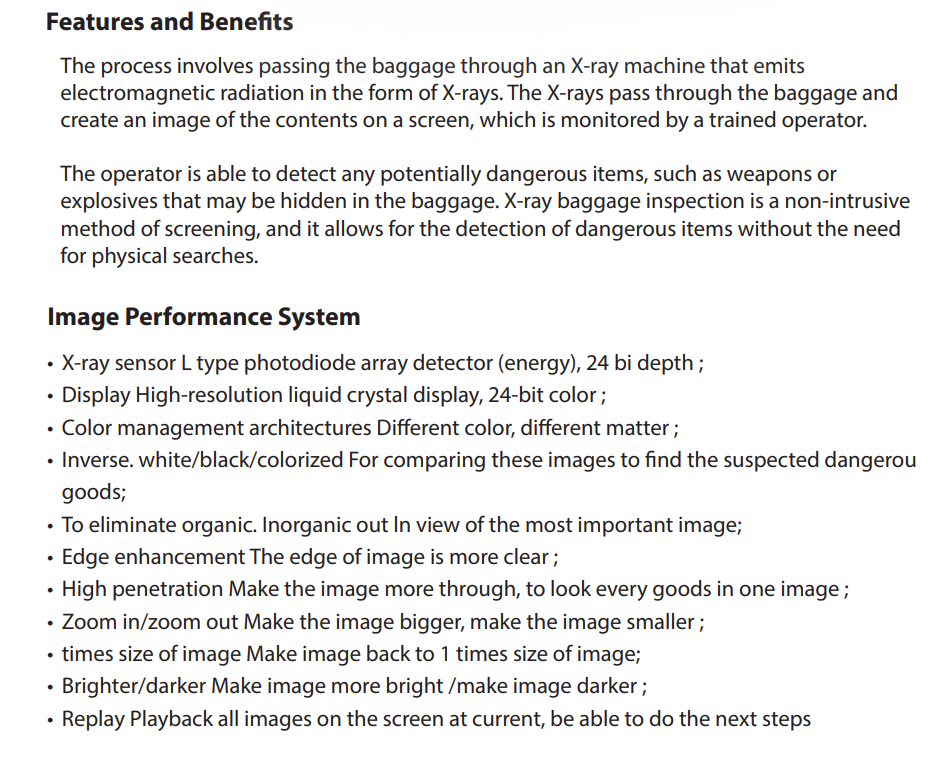

Q3. What image enhancement features are available?

A. The system provides color imaging, black & white mode, negative imaging, organic/inorganic separation, edge enhancement, high penetration, zoom, replay, brightness adjustment, and image inversion for improved threat detection.
