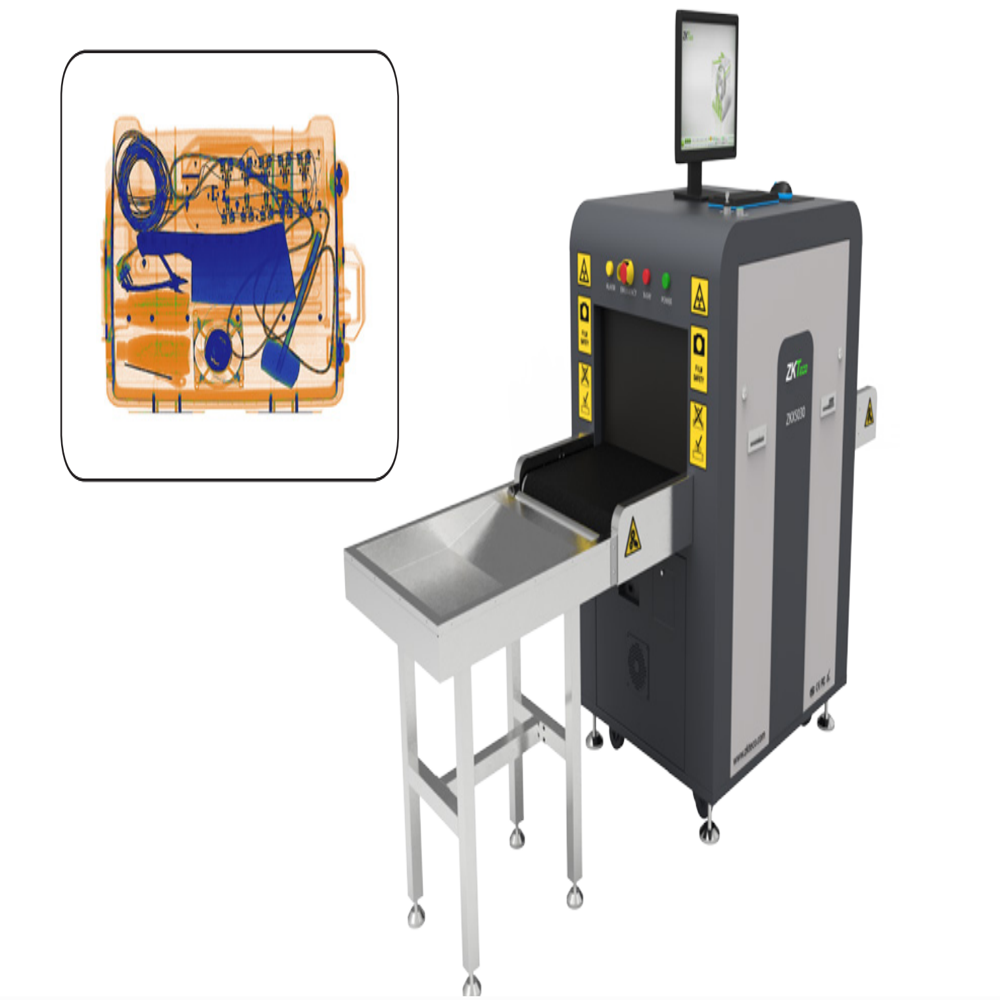

ZKX5030A Single Energy X-ray Inspection System

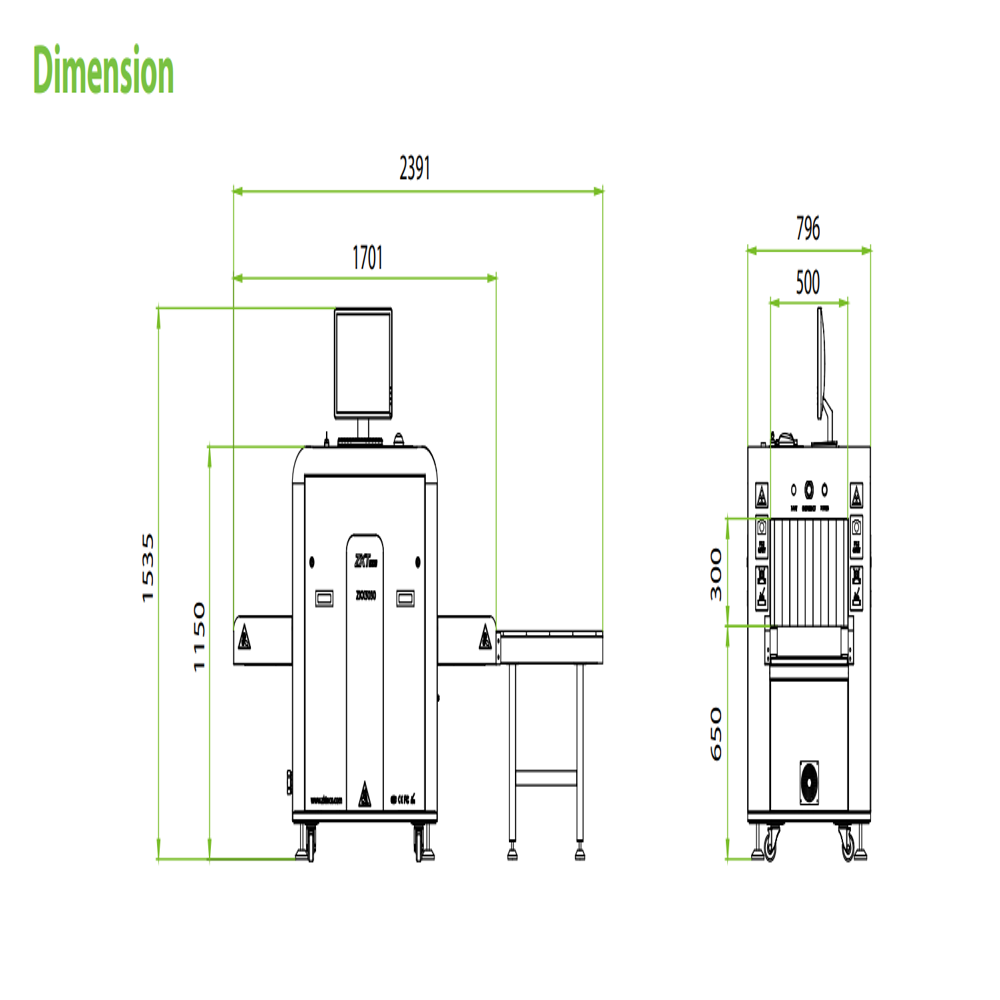

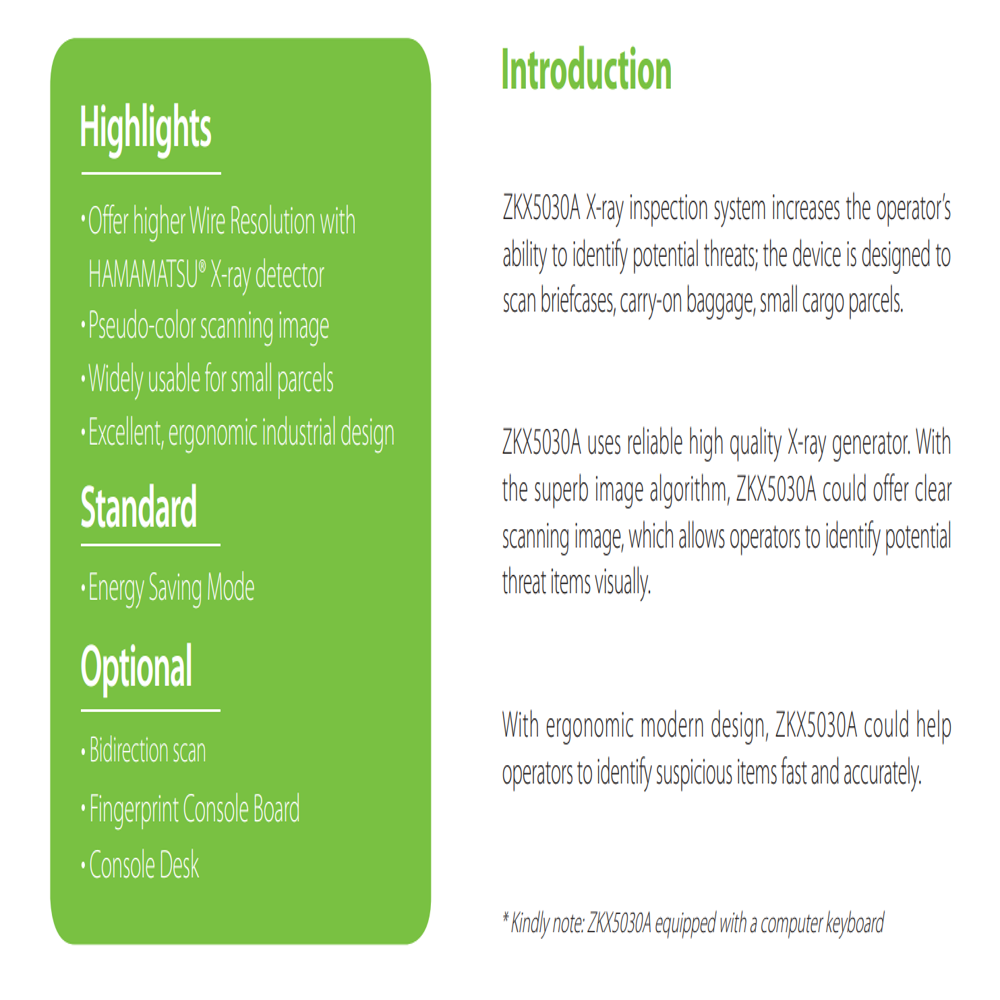

The ZKX5030A Single Energy X-ray Inspection System is designed for fast, accurate, and reliable security screening of briefcases, carry-on baggage, small cargo parcels, and other compact items. Equipped with a high-quality X-ray generator and an advanced image processing algorithm, the system delivers clear pseudo-color scanning images that help operators quickly identify suspicious or prohibited objects. Its ergonomic industrial design, 17.5-inch LED display, and user-friendly interface improve operational efficiency in high-traffic security environments. The system also features Energy Saving Mode as a standard function, while bidirectional scanning, fingerprint console board, and console desk are available as optional accessories. With a tunnel size of 507 305 mm and a maximum load capacity of 120 kg, it is suitable for a wide range of screening applications.

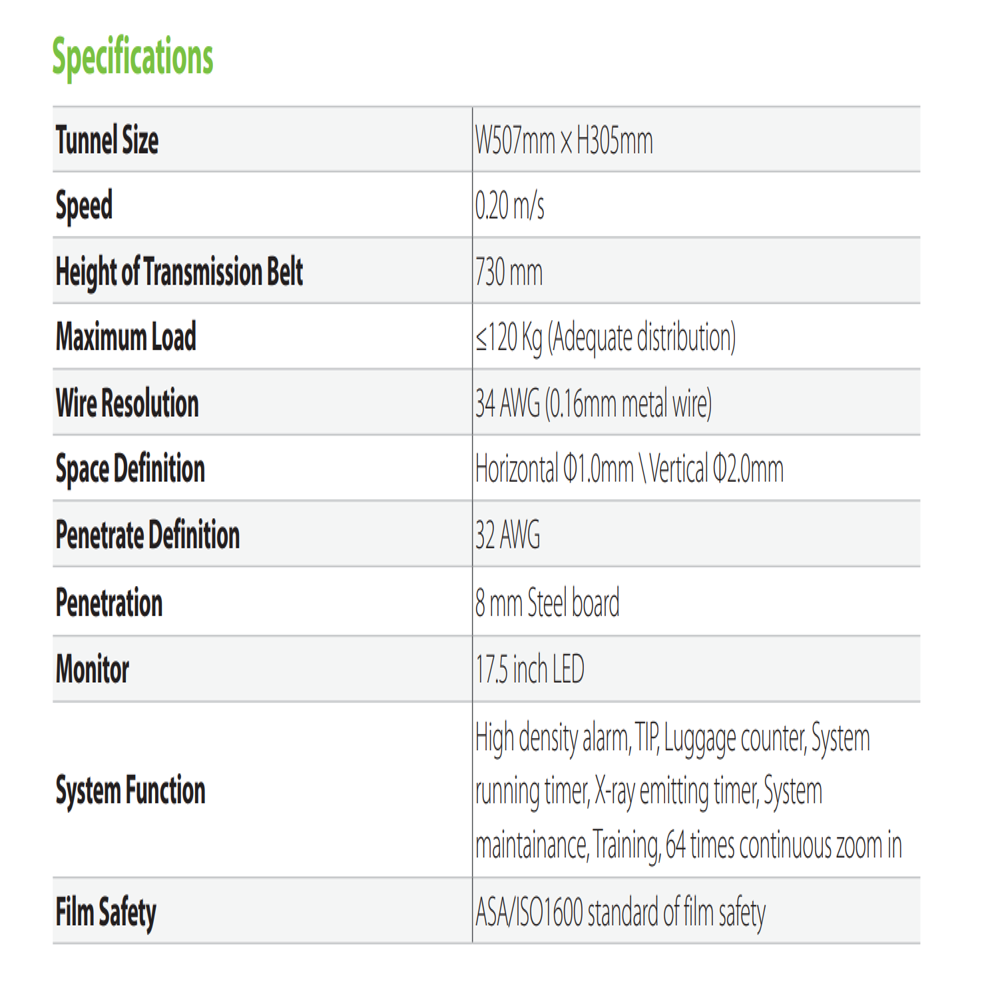

The system provides high-performance scanning with 34 AWG wire resolution, 8 mm steel penetration capability, and intelligent functions including high-density alarm, TIP, luggage counter, system running timer, X-ray emitting timer, maintenance mode, training mode, and up to 64x continuous image zoom. It operates using an 80 KV X-ray generator with sealed oil cooling for continuous performance and complies with the ASA/ISO1600 film safety standard. The ZKX5030A is widely used at airports, government buildings, offices, hotels, educational institutions, logistics centers, manufacturing facilities, railway stations, and commercial complexes where dependable baggage inspection is essential. Its advanced imaging technology, reliable performance, and intuitive operation make it an ideal solution for enhancing security screening while maintaining smooth passenger and visitor flow.

FAQs

Q1. Does the ZKX5030A support bidirectional scanning?

A. Bidirectional scanning is available as an optional feature, while the standard model includes Energy Saving Mode.

Q2. What types of items can this X-ray inspection system screen?

A. It is designed to inspect briefcases, carry-on baggage, small cargo parcels, and similar items up to 120 kg with proper weight distribution.

Q3. What security features are included in the system?

A. The system includes high-density alarm, TIP, luggage counter, X-ray emitting timer, maintenance mode, training mode, continuous 64x zoom, and high-resolution pseudo-color imaging for accurate threat detection.
