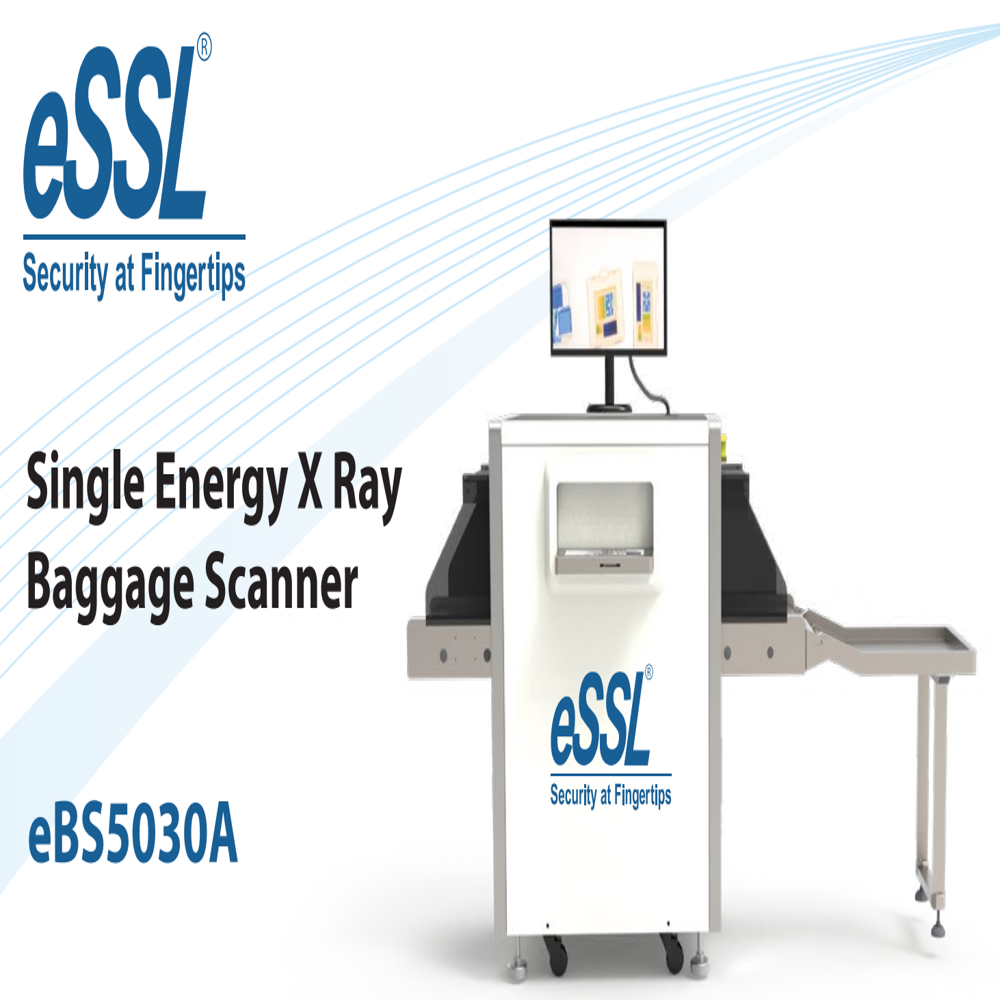

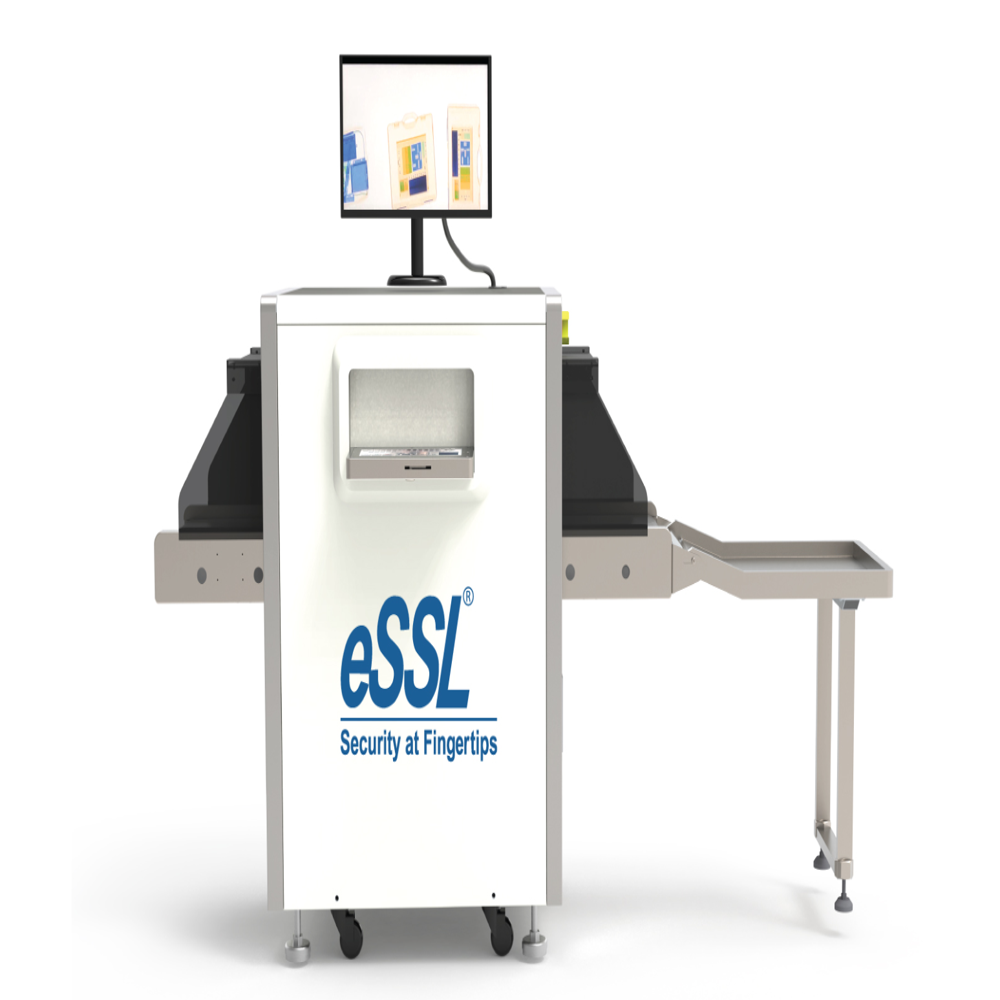

X ray Inspection System (Single Energy)

Name: X ray Inspection System (Single Energy)
Brand: CDN TECHNOLOGIES (INDIA) PVT. LTD.
Price: 585000.0 INR
Availability: InStock

Price 585000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

X ray Inspection System (Single Energy) Specification

Weight
50 Kilograms (kg)

Material
Aluminium

Color
Gray

Camera Type
Digital Camera

Sensor Type
CMOS

Camera Style
Hidden Camera

Technology
Wi-fi

Special Features
Weather Proof

Remote Control
Yes

Application
Outdoor, Hotels, Restaurant, Indoor, Cinema Theater, Railway Stations, Airport

Power Supply
140 Kv

X ray Inspection System (Single Energy) Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
50 Units Per Week

Delivery Time
1 Days

Main Domestic Market
All India

About X ray Inspection System (Single Energy)

Technical Specifications

Tunnel Size: W507mm x H305mm
Speed : 0.20 m/s
Height of Transmission Belt : 1000 mm
Maximum Load : <120 kg (Adequate distribution)
Wire Resolution : 34 AWG (0.16mm metal wire)
Space Definition : Horizontal 1.0mm Vertical 2.0mm
Penetrate Definition : 32 AWG
Penetration : 8mm Steel board
Monitor : 17 inch LED
System Function : High density alarm, TIP,
Luggage counter, System running timer, X-ray emitting timer, System maintenance,
Training, 64 times continuous zoom in
Optional Function : Video surveillance system, Bidirection scan, Electrical weighing system, Energy saving mode, Ultrasonic rat repellent
Film Safety : ASA/ISO1600 standard of film safety

X-ray System

Tube Voltage : 80 Kv
Cooling : Seal oil cooling / 100%
Single Inspection Dosage : Rate<1.0 u Gy
Radiation Leak Dosage : 0.1u Gy/h
(5cm from the surface)

Installation Specification

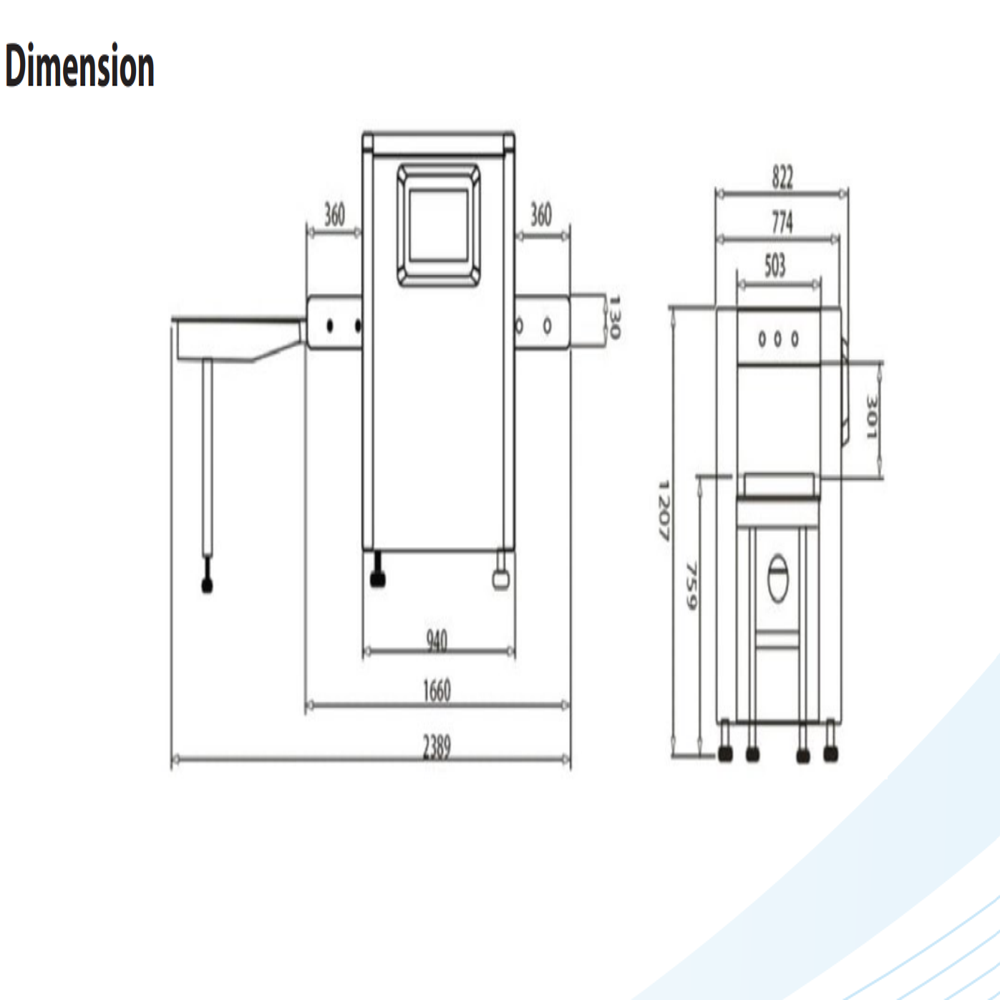

Package Size : L1990mm <x W990mm x H1320mm
Package Weight : 410 KG
Power Consumption : 1 kVA
Noise : 53.8 dB(A)

Advanced Security with Hidden Camera Technology

This X-ray inspection system incorporates cutting-edge hidden camera technology using a CMOS sensor. Its concealed camera style and digital imaging ensure unobtrusive yet precise detection. Designed to blend seamlessly into various settings, the system supports robust security without attracting attention, making it ideal for sensitive and high-traffic environments.

Versatile Applications Across Diverse Locations

Suitable for both indoor and outdoor environments, this inspection system is commonly deployed at hotels, restaurants, cinemas, railway stations, and airports. Weatherproof aluminium construction allows it to withstand varying climates, while its Wi-Fi connectivity and remote control options provide flexibility and ease of operation in numerous scenarios.

Reliable Performance & User-Friendly Operation

Utilizing a 140 Kv power supply and portable 50 kg design, the system is both powerful and practical. Its digital camera and remote control features ensure effortless monitoring and flexible deployment. The user-centric design makes installation and maintenance straightforward, benefiting a diverse range of operators and service providers in the security industry.

FAQ's of X ray Inspection System (Single Energy):

Q: How does the X-ray Inspection System with CMOS sensor technology enhance security monitoring?

A: The CMOS sensor ensures high-resolution imaging, allowing for accurate detection and analysis of concealed or suspicious items. Its hidden camera design enables discreet surveillance, making it effective for security-sensitive applications without drawing attention.

Q: What are the main benefits of using a Wi-Fi enabled, weatherproof X-ray Inspection System?

A: The Wi-Fi functionality enables remote access and real-time monitoring, while the weatherproof aluminium casing ensures reliable operation in various conditions-both indoor and outdoor. This maximizes flexibility and minimizes the risk of damage due to environmental factors.

Q: When is it recommended to use this inspection system in commercial environments?

A: This system is particularly beneficial during peak hours, special events, or whenever heightened security is required. It streamlines access control and inspection processes in places like hotels, restaurants, theaters, airports, and railway stations.

Q: Where can this digital X-ray inspection system be installed?

A: Thanks to its versatile design and robust construction, it can be installed at entry points, baggage screening areas, or any location within hotels, restaurants, cinemas, railway stations, and airports that requires enhanced screening and security.

Q: What is the process for operating and monitoring the X-ray Inspection System?

A: Once installed, operators can control and monitor the system remotely via Wi-Fi using the remote control or digital interface. The CMOS camera captures and transmits images in real time, allowing security personnel to assess and respond promptly.

Q: How does the aluminium material and digital technology benefit long-term usage?

A: Aluminium provides durability and corrosion resistance, which prolongs the system's lifespan, especially in challenging weather. Digital technology-including remote control and Wi-Fi features-simplifies maintenance, reduces manual intervention, and ensures consistent, reliable operation.
