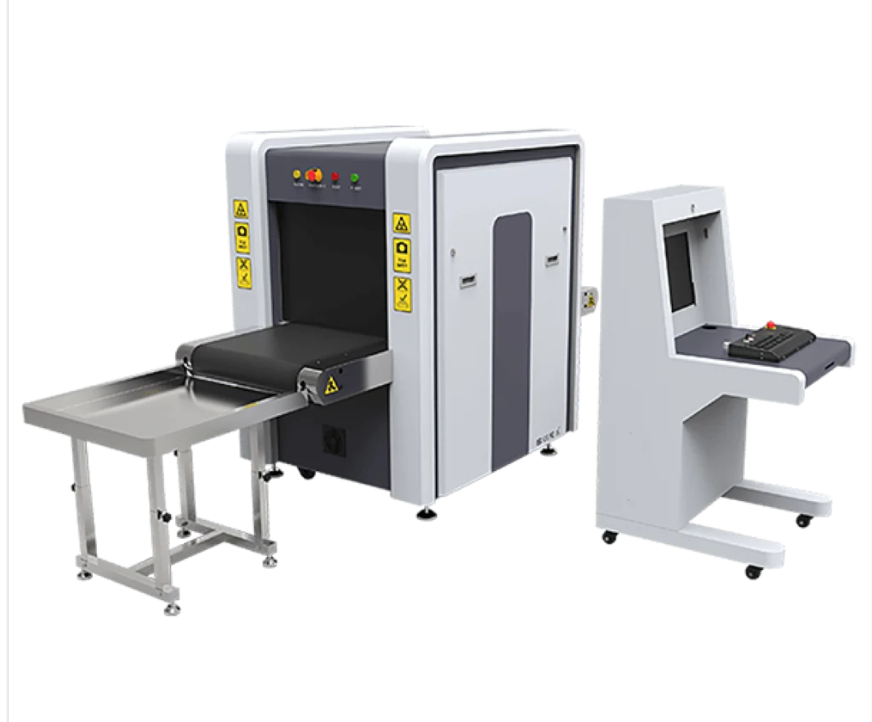

X ray Inspection System (Dual Energy)

Name: X ray Inspection System (Dual Energy)
Brand: CDN TECHNOLOGIES (INDIA) PVT. LTD.
Price: 105000.0 INR
Availability: InStock

Price 105000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

X ray Inspection System (Dual Energy) Specification

Weight
50 Kilograms (kg)

Color
gray

Material
Aluminium

Warranty
1 Year

Frequency
50 Hertz (HZ)

Camera Type
Digital Camera

Sensor Type
CMOS

Camera Style
Hidden Camera

Technology
GPS

Special Features
Weather Proof

Remote Control
Yes

Application
Hotels, Restaurant, Cinema Theater, Railway Stations, Airport, Outdoor, Indoor

Power Supply
240V

X ray Inspection System (Dual Energy) Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cheque, Cash Advance (CA)

Supply Ability
10 Units Per Month

Delivery Time
1 Days

Main Domestic Market
All India

About X ray Inspection System (Dual Energy)

Technical Specifications

Tunnel Size : W507mm x H305mm
Speed : 0.20 m/s
Height of Transmission Belt : 1000 mm
Maximum Load : <120 kg (Adequate distribution)
Wire Resolution : 38 AWG (0.1mm metal wire)
Space Definition : Horizontal 1.0mm Vertical2.0mm
Penetrate Definition : 32 AWG
Penetration : 32mm Steel board
Monitor : 17 inch LED
System Function : High density alarm, Explosive/
Drug auxiliary detect, TIP, Luggage counter,
System running timer, X-ray emitting timer, Training,
64 times continuous zoom in
Optional Function : Video surveillance system,
Bidirection scan, Electrical weighing system,
Energy saving mode, Ultrasonic rat repellent
Film Safety : ASA/ISO1600 standard of film safety

X-ray System

Tube Voltage : 140 Kv
Cooling : Seal oil cooling / 100%
Single Inspection Dosage : Rate<1.0 u Gy
Radiation Leak Dosage : 0.1u Gy/h
(Scm from the surface)

Installation Specification

Package Size : L1990mm <x W990mm x H1320mm
Package Weight : 450 KG
Power Consumption : | kVA
Noise : 53.8 dB(A)

Advanced Security with Dual Energy Technology

Utilizing dual energy X-ray technology, this system ensures high detection sensitivity for enhanced threat identification. The hidden CMOS digital camera captures detailed images for thorough inspections while remaining inconspicuous. Its integration of GPS technology and remote-control capability allows users to monitor and manage security seamlessly from any location.

Built for Versatility and Durability

Crafted from weatherproof aluminium, this system is adept for both outdoor and indoor installations. Whether in high-traffic public spaces like airports or discrete locations such as hotels, its durable design withstands diverse environmental conditions. The lightweight 50 kg structure also allows easy relocation as needed.

FAQ's of X ray Inspection System (Dual Energy):

Q: How does the dual energy feature enhance X-ray inspection efficiency?

A: Dual energy technology differentiates between organic and inorganic materials, enabling the system to provide clearer and more accurate images. This leads to improved identification of concealed items, enhancing security screening efficiency in various environments.

Q: What are the main applications for this X-ray inspection system?

A: This system is designed for a wide range of applications including hotels, restaurants, cinema theaters, railway stations, airports, and both outdoor and indoor areas, making it suitable for use wherever robust security screening is required.

Q: When should the system be serviced or maintained, and is there a warranty?

A: Routine maintenance is recommended annually, or as specified in the user manual, to ensure optimal performance. The product comes with a 1-year warranty for added peace of mind.

Q: Where can this inspection system be installed?

A: Thanks to its weatherproof aluminium body and digital camera, the system can be securely installed both indoors and outdoors, adapting well to diverse locations such as transport hubs, hotels, and cinemas.

Q: What is the process for remote monitoring with this device?

A: The system is equipped with remote control functionality, enabling users to operate, monitor, and adjust settings from a distance. Integrated GPS technology allows users to track the device location and status in real-time.

Q: How does the hidden CMOS camera benefit security operations?

A: The hidden CMOS digital camera captures high-resolution images without drawing attention, allowing discreet and effective surveillance during inspections.

Q: What are the key benefits of using this X-ray inspection system?

A: Key benefits include enhanced threat detection with dual energy technology, discreet surveillance, robust durability in diverse environments, ease of remote monitoring, and reliable performance supported by a 1-year warranty.
