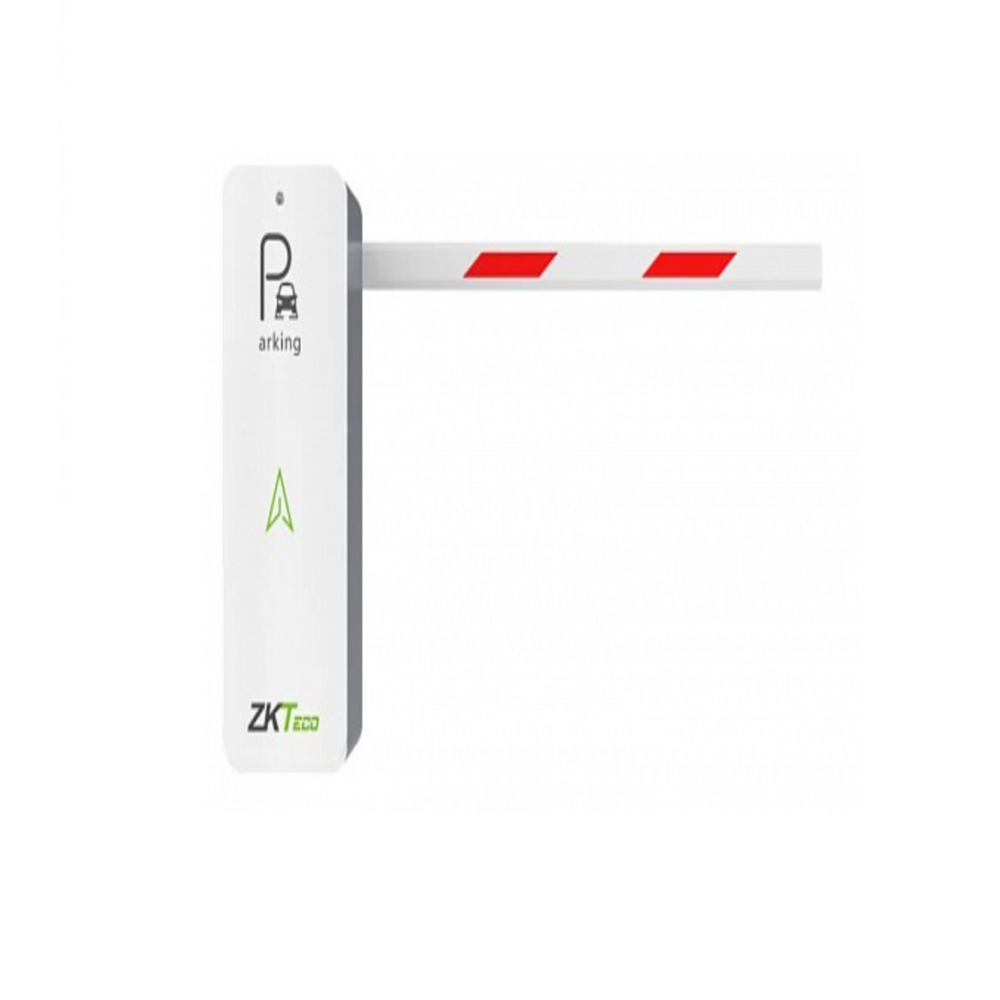

ZKTeco BGM400 Boom Barrier

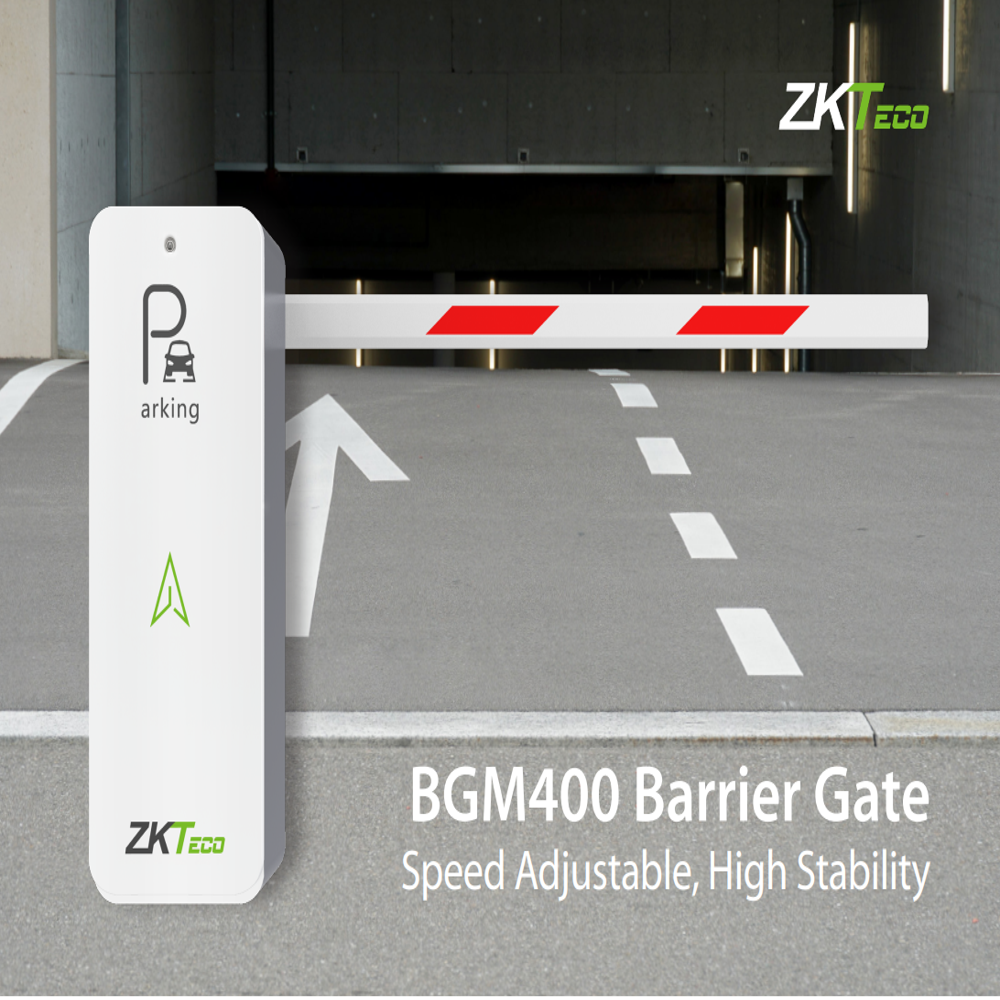

The ZKTeco BGM400 Boom Barrier is a high-performance automatic vehicle access control solution designed for efficient management of entry and exit points in parking facilities, commercial buildings, residential communities, industrial sites, educational institutions, and toll plazas. Powered by a reliable 24V brushless DC motor, the barrier delivers smooth, low-noise, and stable operation even under continuous use. Its telescopic straight boom, available in lengths ranging from 3 to 6 meters, offers flexibility for different installation requirements. When integrated with compatible RFID readers, UHF readers, ANPR systems, or other access control devices, the ZKTeco BGM400 becomes an effective Access Control System for secure vehicle management.

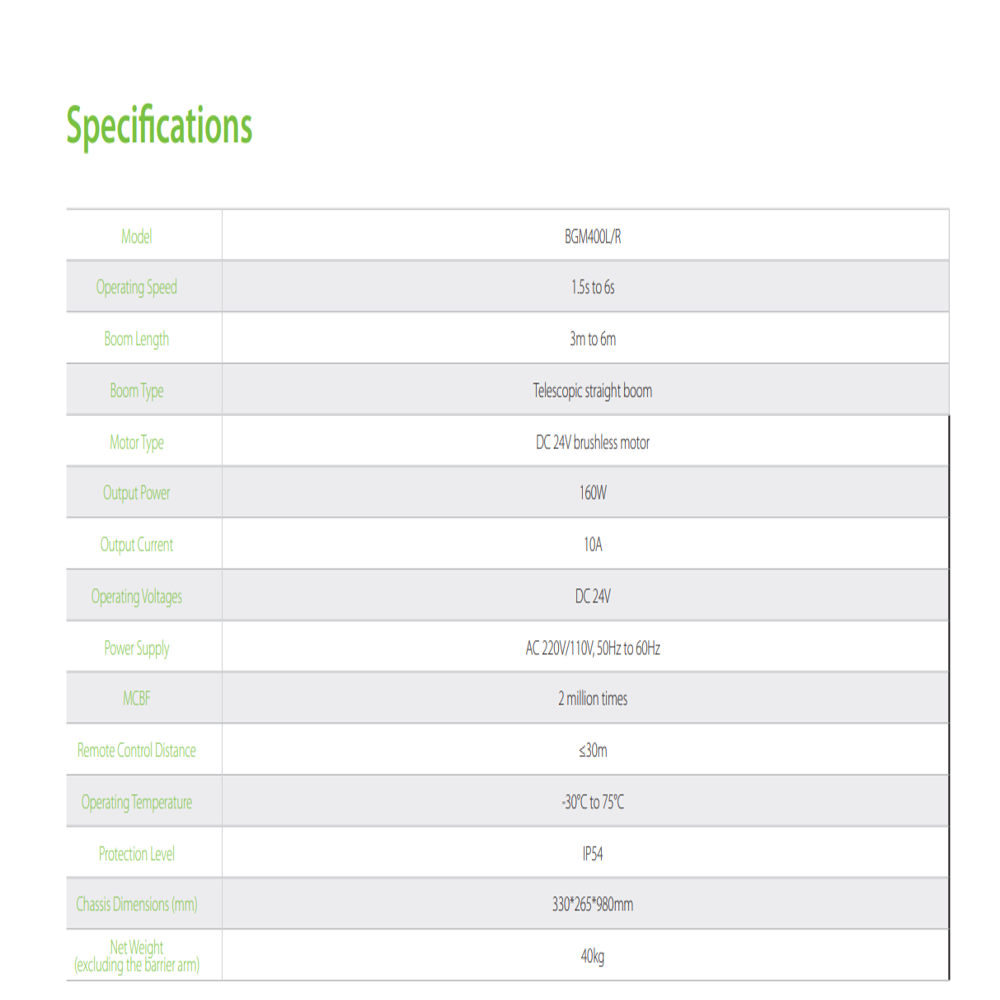

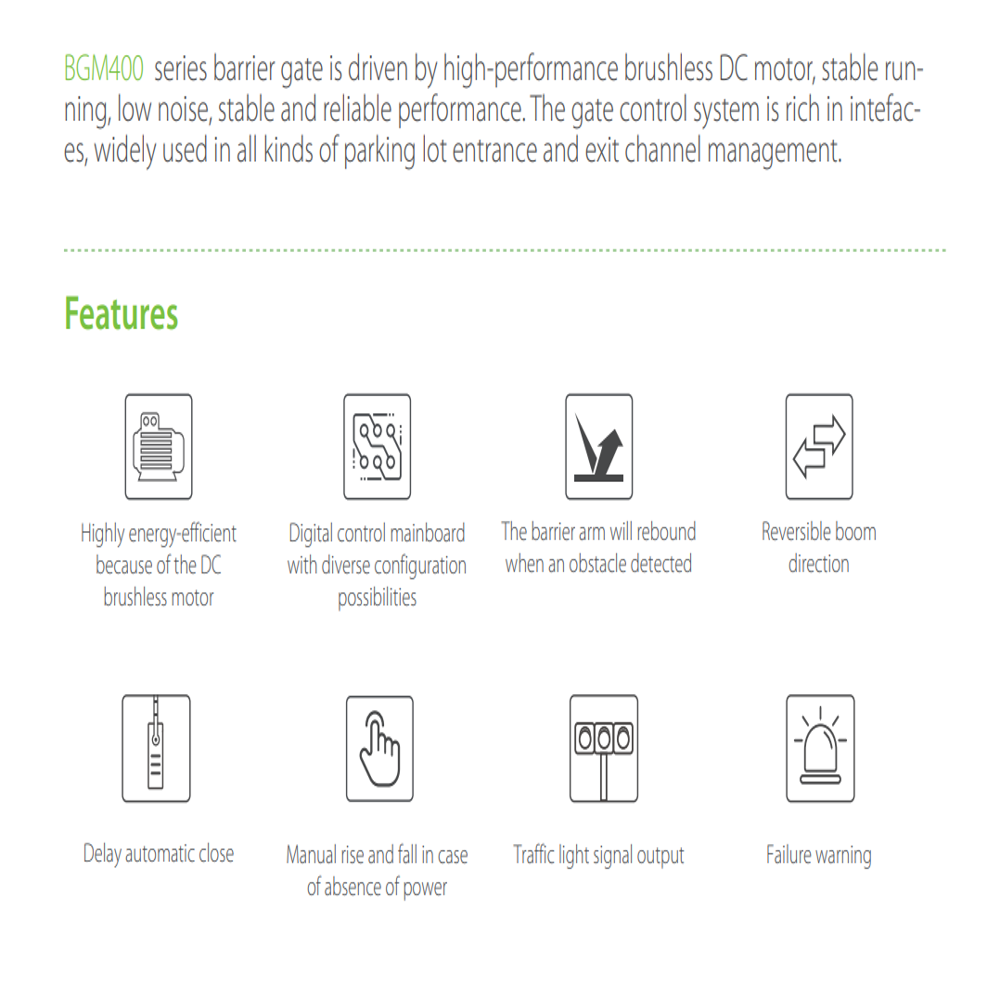

The BGM400 is engineered for durability and intelligent operation, featuring an adjustable opening speed from 1.5 to 6 seconds to suit varying traffic conditions. The digital control mainboard supports multiple configuration options, while the reversible boom direction simplifies installation for both left- and right-hand layouts. Safety features include obstacle detection with automatic boom rebound, delay automatic closing, manual boom operation during power failure, traffic light signal output, and failure warning notifications. With an IP54 protection rating, a motor life of up to 2 million operating cycles, and a remote control range of up to 30 meters, the ZKTeco BGM400 provides dependable performance for demanding vehicle access applications while reducing maintenance requirements and ensuring smooth traffic flow.

FAQs

Q1. Can the operating speed of the BGM400 be adjusted?

Yes. The barrier gate supports adjustable operating speeds ranging from 1.5 to 6 seconds to accommodate different traffic requirements.

Q2. Does the BGM400 include obstacle detection for safety?

Yes. It features obstacle detection that automatically rebounds the boom arm when an obstruction is detected, improving operational safety.

Q3. Is the boom direction reversible during installation?

Yes. The BGM400 supports reversible boom direction, allowing installation in both left-hand and right-hand configurations.
