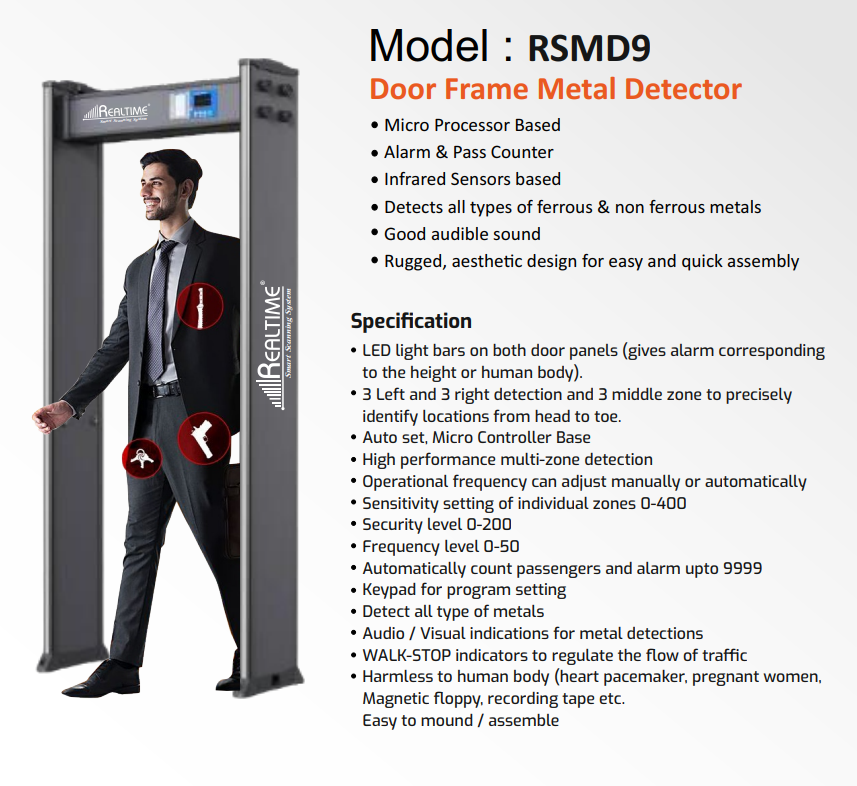

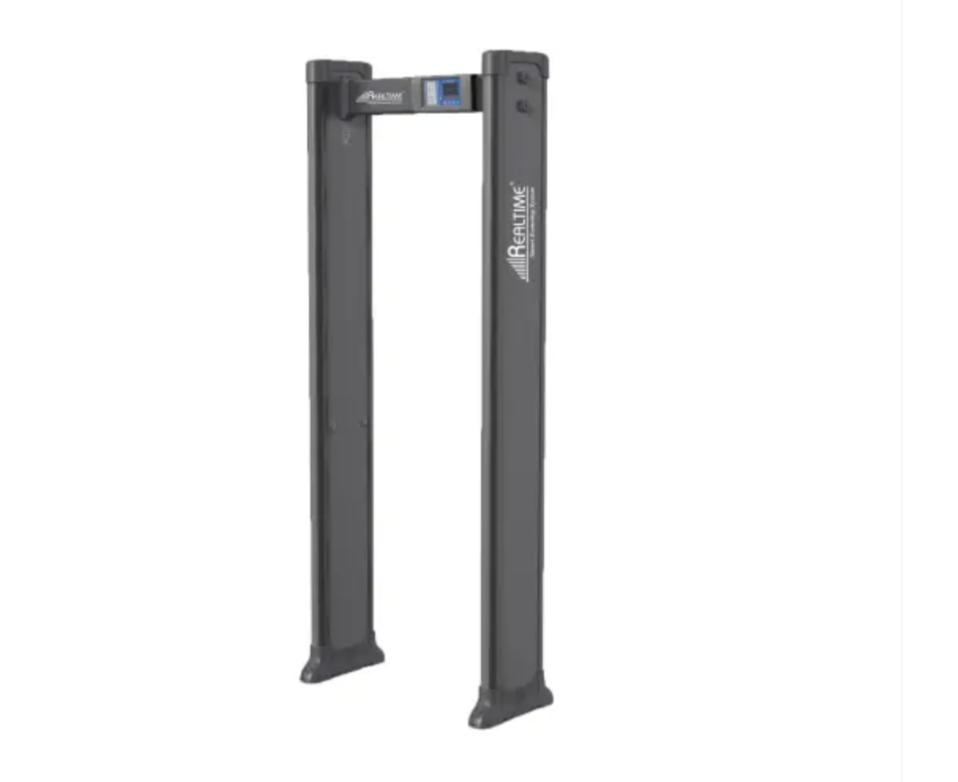

Realtime Door Frame Metal Detector RSMD9 (Nine Zone)

About Realtime Door Frame Metal Detector RSMD9 (Nine Zone)

The RSMD9 is a high-performance walk-through door frame metal detector designed to provide accurate and efficient security screening for high-traffic entry points. Featuring nine detection zones, the system precisely identifies the location of metallic objects across different sections of the body, enabling security personnel to perform faster and more targeted inspections. It is ideal for airports, railway stations, banks, ATMs, government buildings, educational institutions, hospitals, factories, shopping malls, hotels, and other public facilities where dependable security screening is essential. LED light bars on both door panels, along with audio and visual alarms and WALK/STOP indicators, provide clear guidance for both operators and visitors during the screening process.

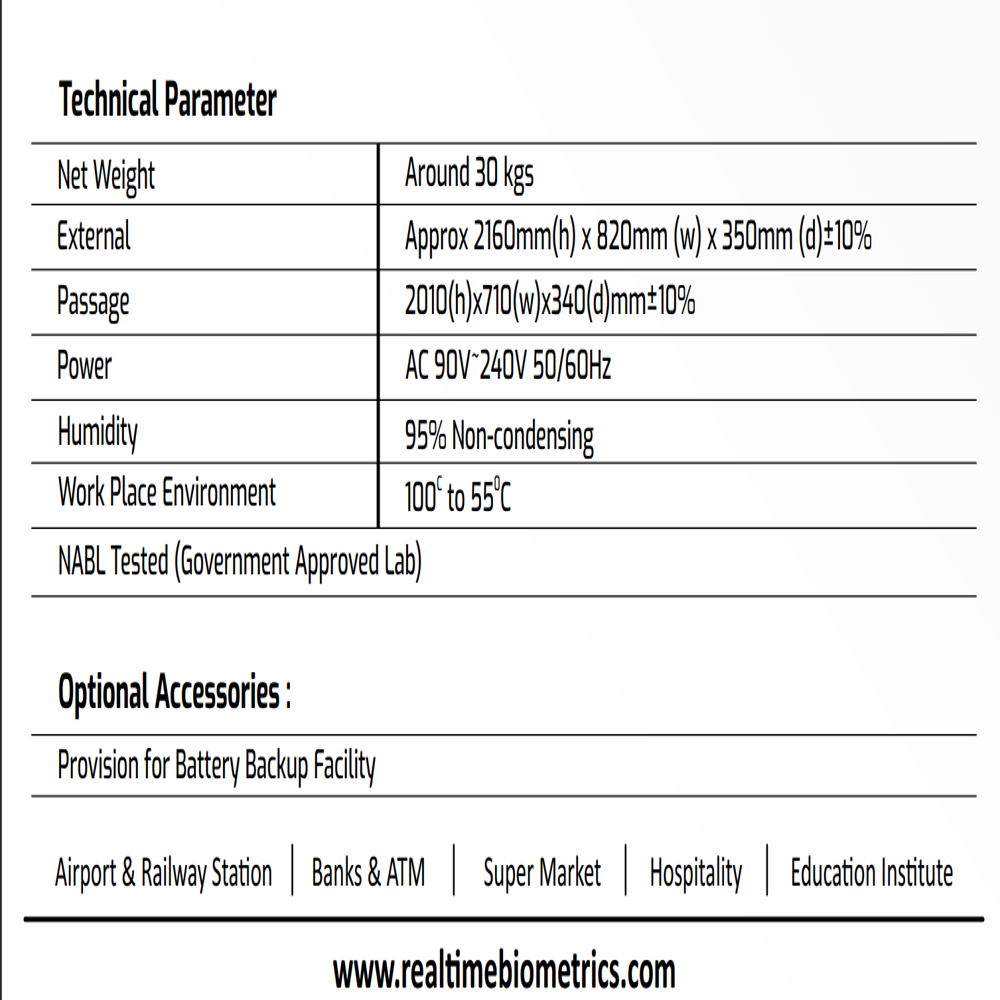

Built around a microprocessor-based control system with infrared sensors, the RSMD9 delivers reliable detection of both ferrous and non-ferrous metals while minimizing false alarms through adjustable sensitivity and operational frequency settings. Each detection zone supports sensitivity adjustment from 0 to 400, with configurable security and frequency levels to suit different environments. The detector automatically counts passengers and alarms up to 9,999, supports keypad-based programming, and operates on a wide AC input range of 90V240V. Its rugged construction allows quick assembly, while optional battery backup support ensures uninterrupted operation when required. Designed to be safe for individuals with pacemakers, pregnant women, and magnetic storage media, the RSMD9 combines precise metal detection, dependable performance, and user-friendly operation, making it an excellent solution for professional security screening applications.

FAQs

Q1. How many detection zones does the RSMD9 provide?
The RSMD9 features nine detection zones that help accurately identify the location of metallic objects from head to toe.

Q2. Can the sensitivity be adjusted for different security environments?
Yes. Each detection zone offers adjustable sensitivity levels from 0 to 400, allowing the detector to be configured for various security requirements.

Q3. What types of metals can the RSMD9 detect?
The detector identifies both ferrous and non-ferrous metals and provides audio and visual alerts when metal objects are detected.
