HB-426 (Hydraulic Bollard)

Price 120000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

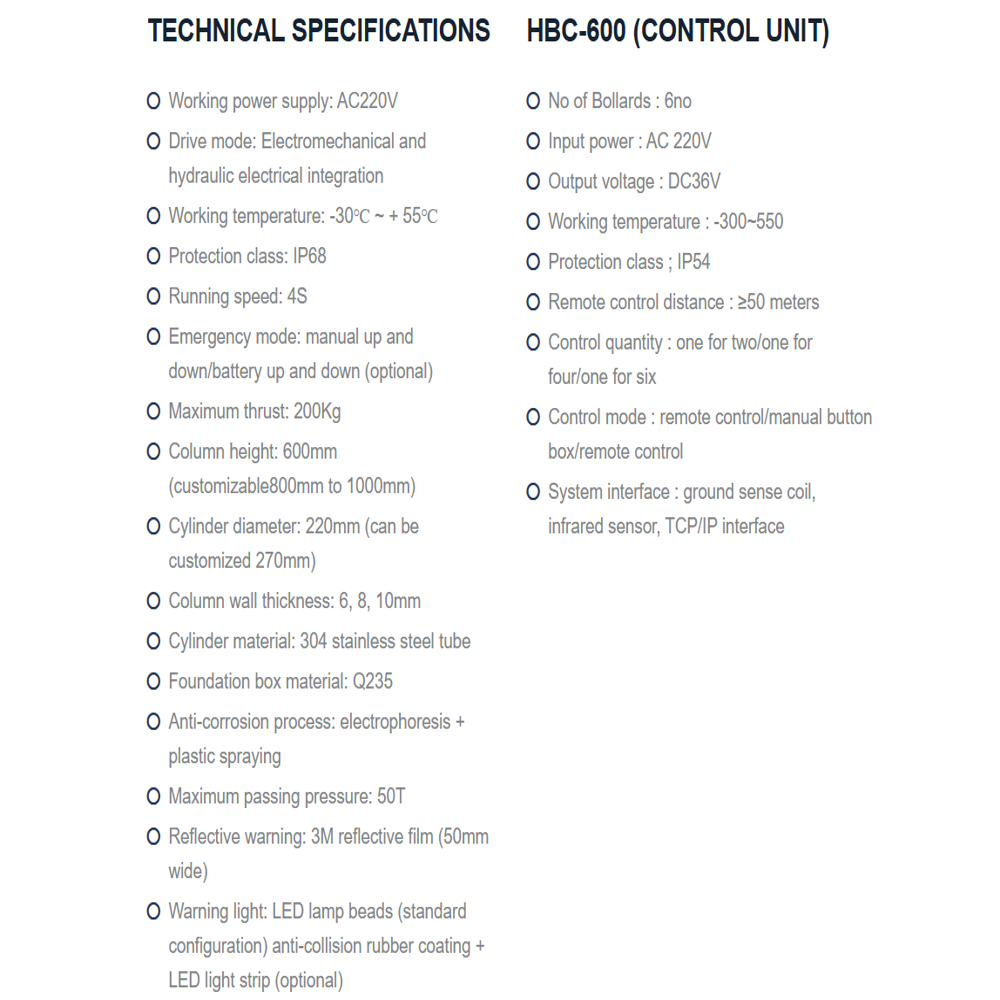

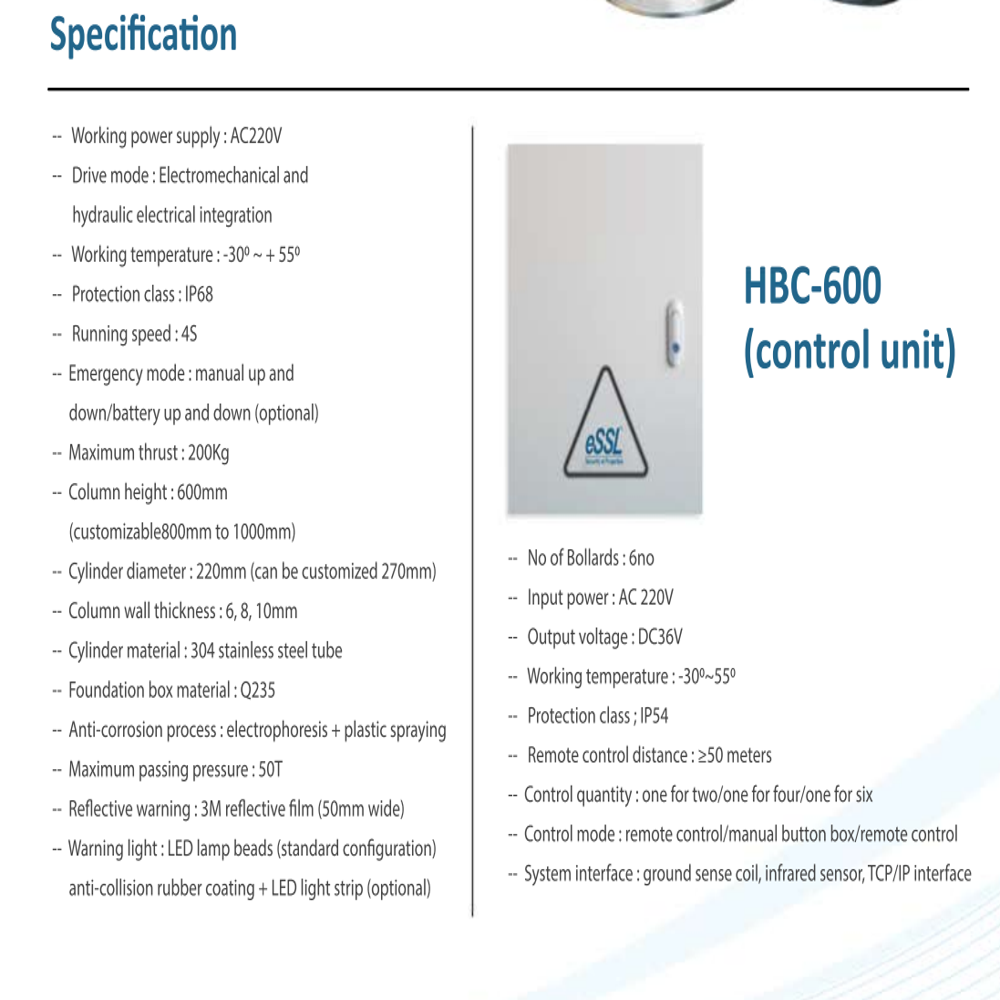

HB-426 (Hydraulic Bollard) Specification

Data Capacity
Controls Up to 6 Bollards

Connectivity Type
TCP/IP Interface, Ground Sense Coil, Infrared Sensor

Features
Electromechanical & Hydraulic Drive, IP68 Protection, IP54 Control Unit, 50 Ton Maximum Passing Pressure, Emergency Manual Operation, Optional Battery Backup, 3M Reflective Film, LED Warning Light, Anti-Corrosion Coating, Remote Control up to 50 m

Display Type
LED Warning Light

Usage & Applications
Government Buildings, Airports, Military Facilities, Embassies, Industrial Plants, Commercial Complexes, Residential Communities, Parking Areas, High-Security Perimeters

Type
Hydraulic Bollard with Control Unit

Material
Plastics, 304 Stainless Steel, Q235 Steel

Measurement
Column Height: 60.0 cm (Customizable to 80.0 100.0 cm); Cylinder Diameter: 22.0 cm (Customizable to 27.0 cm)

Usage
Automatic Vehicle Access Control & Perimeter Security

Identification Time
4 Seconds Seconds

Power
AC 220 V Volt (v)

HB-426 (Hydraulic Bollard) Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About HB-426 (Hydraulic Bollard)

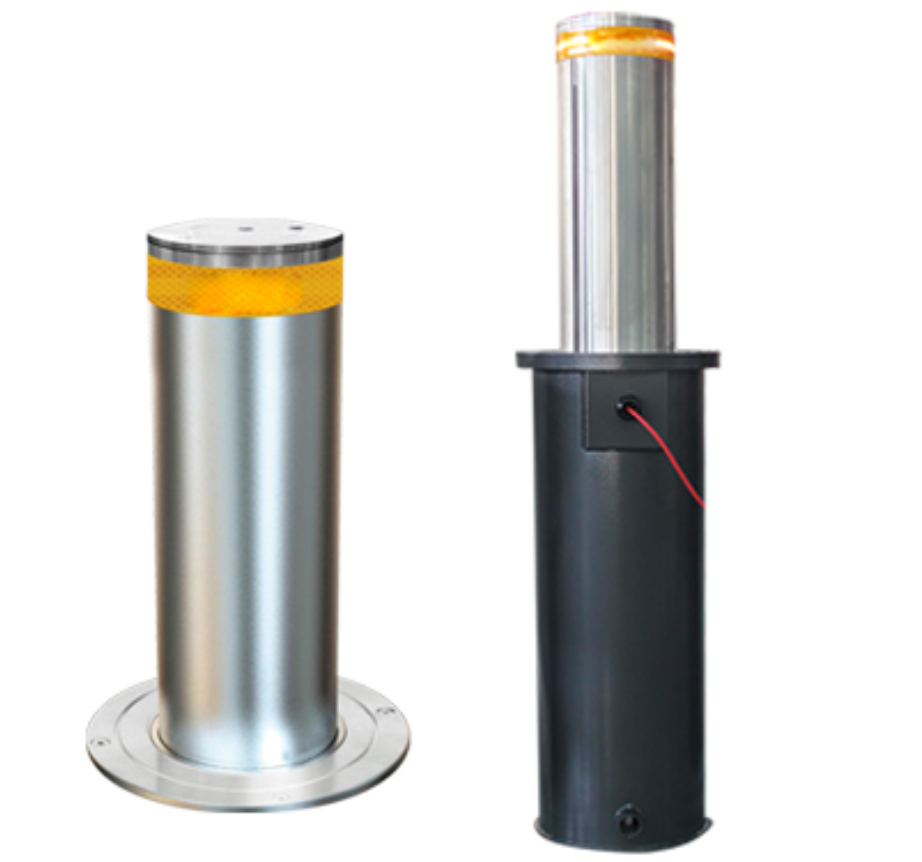

The HB-426 Hydraulic Bollard with HBC-600 Control Unit is an advanced automatic vehicle access control solution designed to provide high-level perimeter protection for sensitive and restricted areas. Combining electromechanical and hydraulic drive technology, the bollard delivers smooth and reliable operation with a rapid 4-second lifting and lowering speed. Manufactured using a durable 304 stainless steel cylinder with an anti-corrosion treatment of electrophoresis and plastic spraying, the system is built to withstand harsh outdoor environments. With an IP68 protection rating for the bollard and support for a maximum passing pressure of 50 tonnes, it is ideal for locations requiring dependable vehicle access management and anti-ram security. The standard LED warning light and 3M reflective film enhance visibility, while optional anti-collision rubber coating and LED light strips provide additional safety.

The HBC-600 control unit supports up to six hydraulic bollards and offers flexible control through remote control, manual button operation, and system integration with ground sense coils, infrared sensors, and TCP/IP interfaces. It provides a remote control distance of up to 50 metres and supports one-for-two, one-for-four, or one-for-six bollard configurations. Optional emergency battery operation enables continued functionality during power failures. The HB-426 Hydraulic Bollard system is suitable for government facilities, military establishments, airports, commercial complexes, factories, industrial plants, embassies, residential communities, parking areas, and other high-security locations where reliable vehicle access control is essential.

FAQs

Q1. How many bollards can the HBC-600 control unit manage?

A. The HBC-600 can control configurations of one for two, one for four, or one for six hydraulic bollards.

Q2. Does the HB-426 support emergency operation during power failure?

A. Yes. It supports manual emergency operation, while battery-powered up and down operation is available as an optional feature.

Q3. Can the bollard system integrate with other security systems?

A. Yes. The control unit supports integration through ground sense coils, infrared sensors, and TCP/IP interfaces for enhanced access control.
