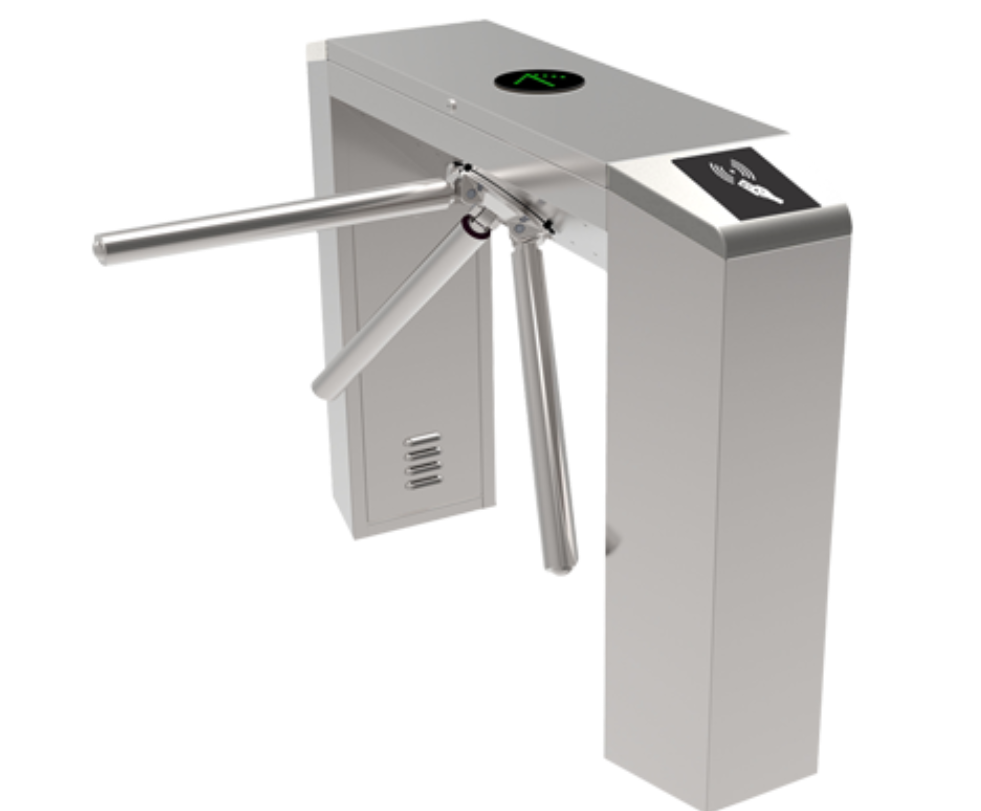

ET-2000 Bridge Type Bidirectional Tripod Turnstile

Price 70000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

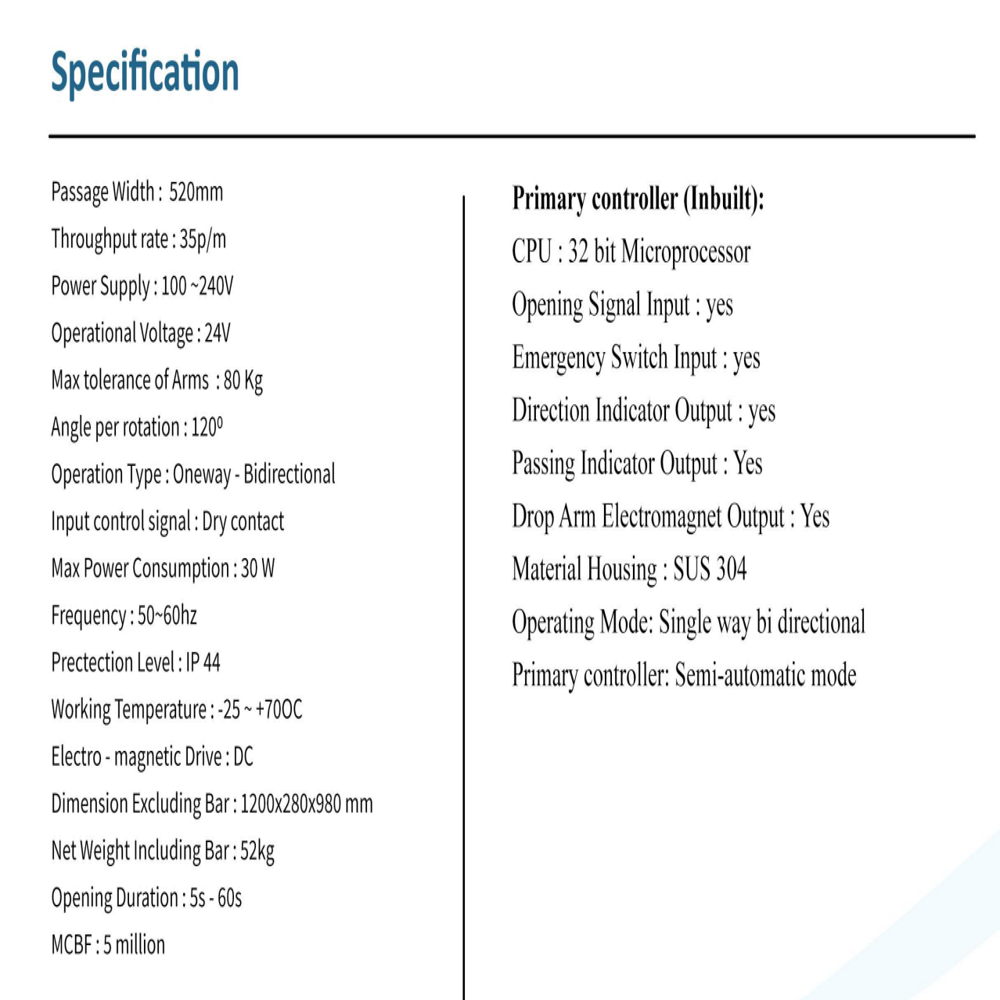

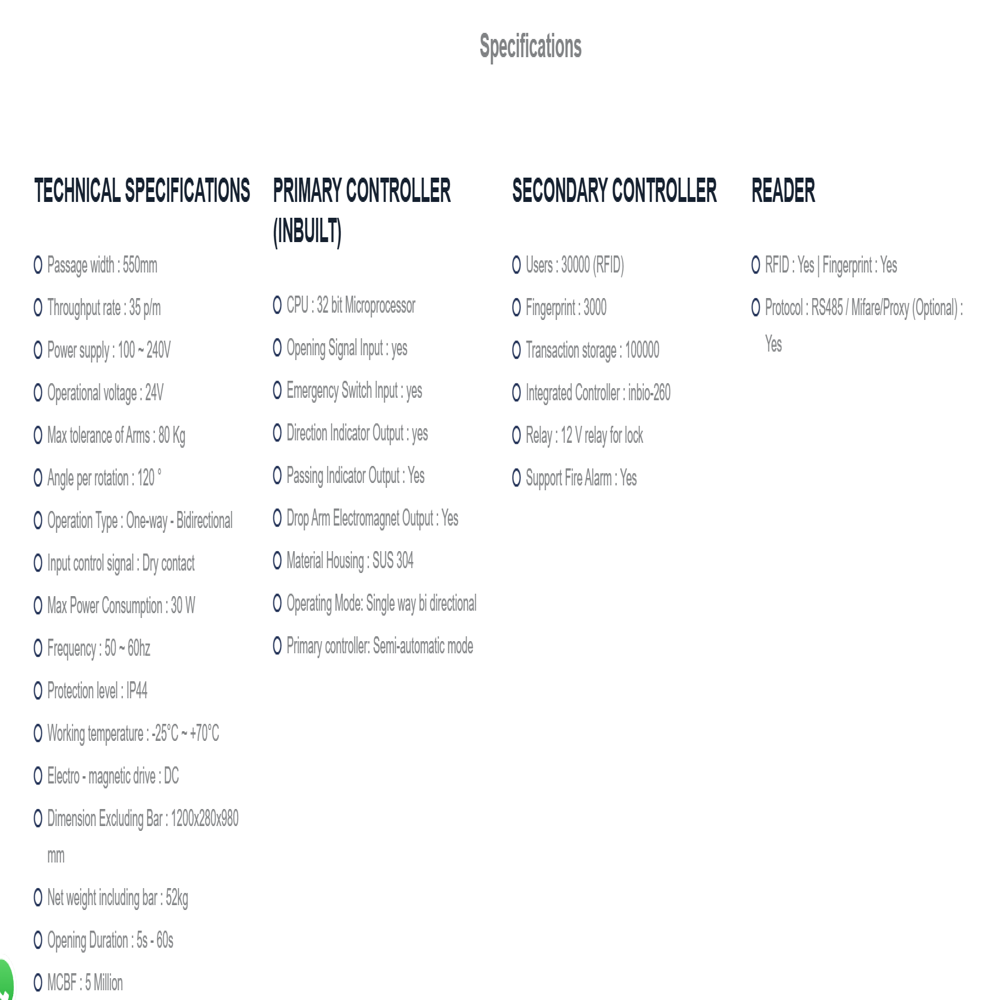

ET-2000 Bridge Type Bidirectional Tripod Turnstile Specification

Connectivity Type
RS485, Mifare, Proximity (Optional), Dry Contact Input

Features
Semi-Automatic Operation, One-Way & Bidirectional Passage, 32-bit Microprocessor Controller, Opening Duration (5 60 Seconds), Emergency Switch Input, Direction & Passing Indicators, Drop Arm Electromagnet, Fire Alarm Support, 5 Million MCBF

Data Capacity
RFID Users: 30,000; Fingerprint Users: 3,000; Transaction Storage: 100,000

Usage & Applications
Offices, Corporate Campuses, Educational Institutions, Metro Stations, Stadiums, Industrial Facilities, Commercial Buildings

Type
Bridge Type Bidirectional Tripod Turnstile

Material
Plastic, SUS 304 Stainless Steel Housing

Measurement
120 28 98 cm (Excluding Bar)

Usage
Pedestrian Access Control

Identification Mode
RFID, Fingerprint

Power
30 W (Maximum) Watt (w)

ET-2000 Bridge Type Bidirectional Tripod Turnstile Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Week

About ET-2000 Bridge Type Bidirectional Tripod Turnstile

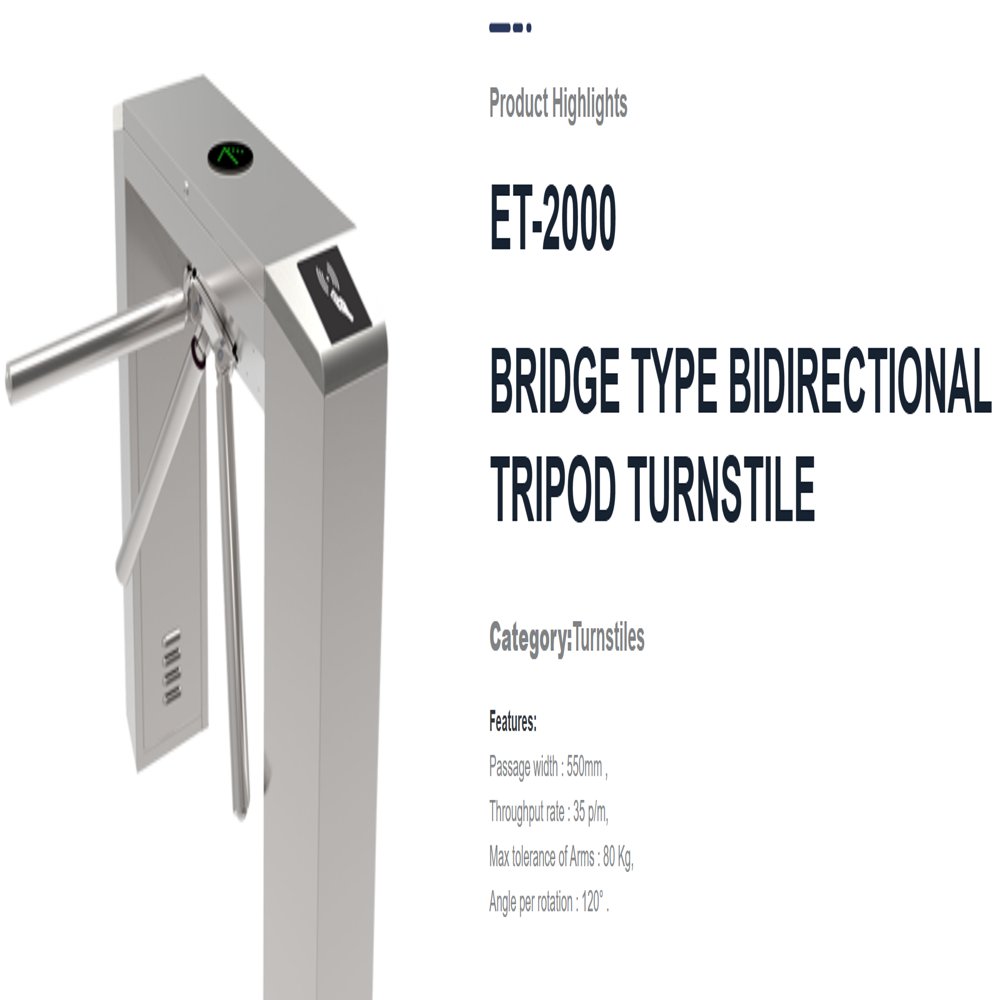

The ET-2000 is a bridge-type bidirectional tripod turnstile designed to provide secure and efficient pedestrian access control in offices, corporate campuses, metro stations, industrial facilities, educational institutions, stadiums, and other high-traffic environments. Built with a durable SUS 304 stainless steel housing, the turnstile offers a passage width of 550 mm and a throughput rate of up to 35 persons per minute for smooth and controlled movement. It supports integration with Fingerprint Attendance System, Face Recognition System, RFID Attendance Machine, QR code readers, and Employee Attendance System solutions, making it suitable for modern Access Control System deployments. The turnstile features a maximum arm tolerance of 80 kg and a 120 arm rotation for reliable operation in demanding applications.

The ET-2000 operates on a 24V DC electro-magnetic drive and includes an inbuilt 32-bit microprocessor controller with support for opening signal input, emergency switch input, direction indicator output, passing indicator output, and drop-arm electromagnet output. It supports one-way and bidirectional operating modes, semi-automatic operation, adjustable opening duration from 5 to 60 seconds, and dry contact input control. The integrated secondary controller supports up to 30,000 RFID users, 3,000 fingerprint users, and 100,000 transaction records while providing compatibility with RS485, Mifare, and Proximity readers. With an IP44 protection rating, 5 million MCBF, fire alarm support, and a rugged stainless steel construction, the ET-2000 is an ideal Turnstile Access Control System for reliable and centralized entry management.

FAQs

Q1. Does the ET-2000 support biometric and RFID authentication?
Yes. It supports RFID and fingerprint authentication and is compatible with RS485, Mifare, and Proximity readers.

Q2. Can the ET-2000 operate in both directions?
Yes. It supports both one-way and bidirectional operation with semi-automatic control.

Q3. Is the turnstile suitable for high-traffic locations?
Yes. It supports a throughput of up to 35 persons per minute and features a durable SUS 304 stainless steel construction with a 5 million MCBF rating.
