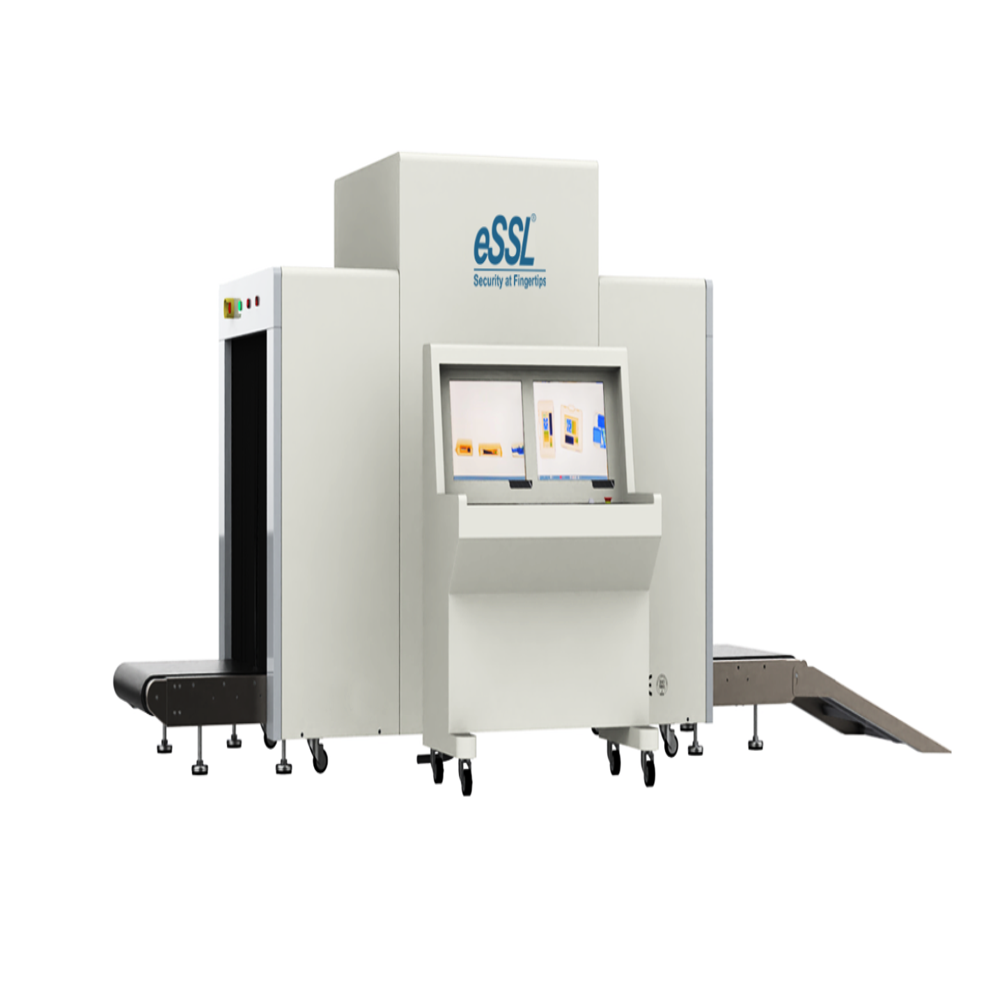

eSSL eBS100100C X-Ray Baggage Scanner

The eSSL eBS100100C X-Ray Baggage Scanner is a high-capacity security screening system designed for inspecting large baggage, parcels, cargo, and consignments in high-security environments. With a spacious tunnel size of 1000 1000 mm and a conveyor load capacity of 300 kg, it is ideal for airports, railway stations, logistics hubs, exhibition centers, shopping malls, government buildings, courts, prisons, hotels, warehouses, stadiums, and industrial facilities. Utilizing advanced X-ray imaging technology with a 24-bit L-shaped array detector, the scanner produces high-resolution images that enable operators to accurately identify prohibited items, weapons, explosives, and other suspicious objects without opening baggage. Its intelligent image enhancement capabilities, including pseudo color imaging, black and white display, edge enhancement, high and low penetration modes, zoom, replay, and brightness adjustment, ensure efficient and reliable baggage inspection.

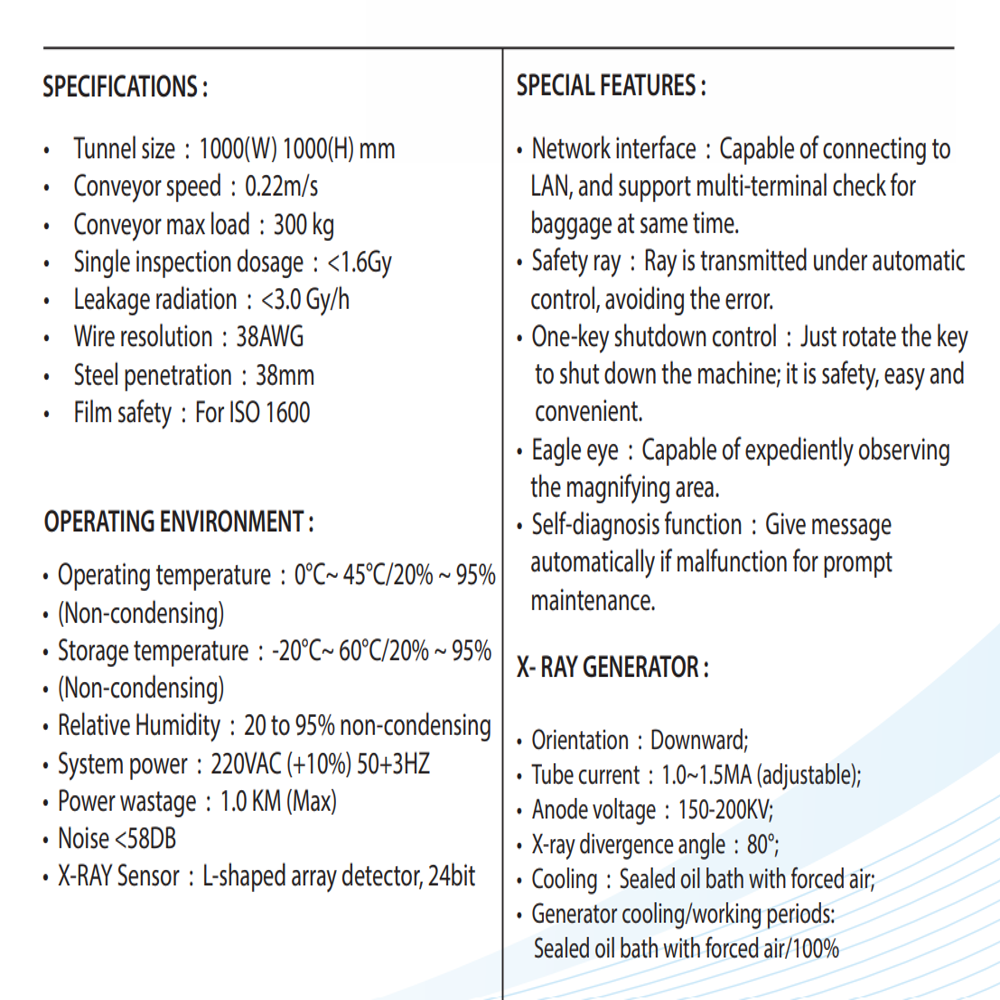

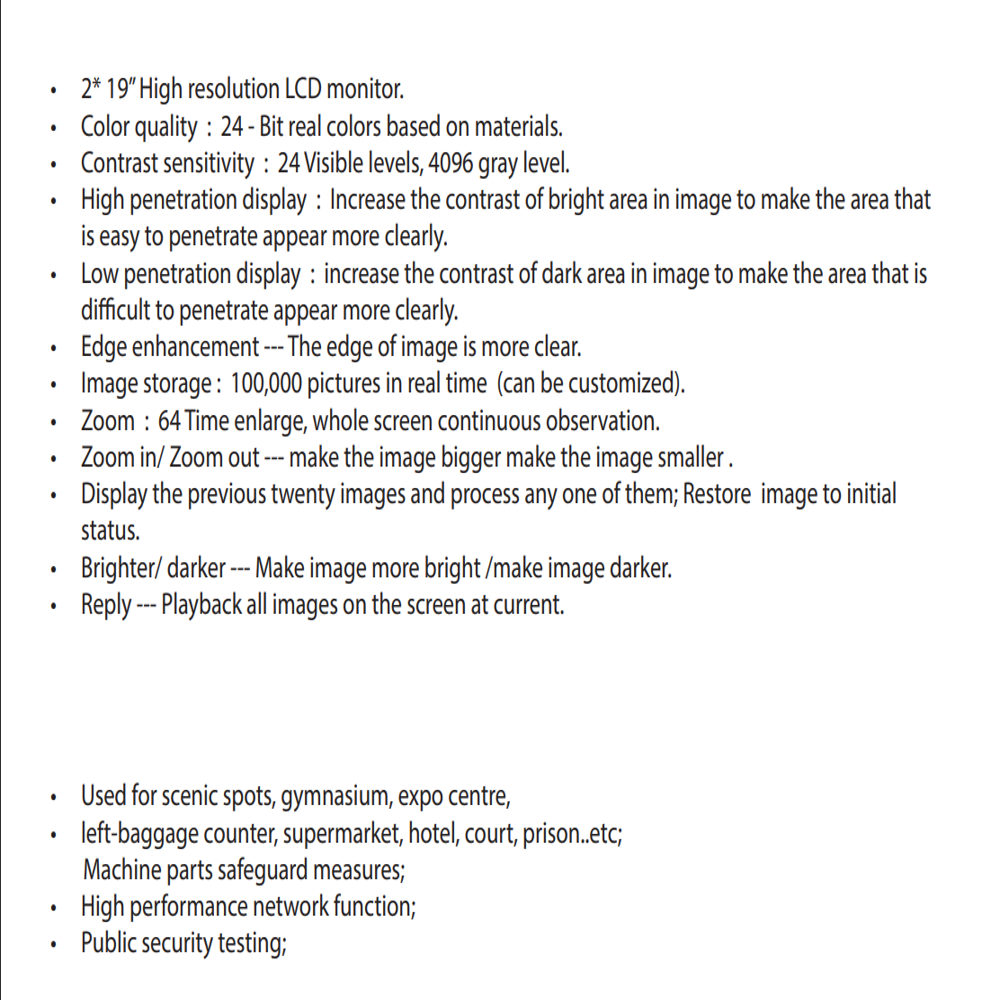

The eSSL eBS100100C is powered by a high-performance 150200 kV X-ray generator with adjustable tube current and sealed oil-bath cooling for continuous operation. It features dual 19-inch high-resolution LCD monitors, real-time storage of up to 100,000 images, LAN connectivity for multi-terminal monitoring, Eagle Eye image magnification, one-key shutdown, automatic X-ray control, and self-diagnosis for simplified maintenance. With 38 mm steel penetration, 38 AWG wire resolution, 64x digital zoom, and support for pseudo color as well as grayscale imaging, the system provides exceptional image clarity for demanding security applications. Designed for continuous operation with low noise levels and dependable performance, the eSSL eBS100100C offers a complete solution for modern baggage screening and security management.

FAQs

Q1. What is the maximum baggage size supported by the eSSL eBS100100C?

A. The scanner features a large tunnel size of 1000 1000 mm and supports baggage weighing up to 300 kg.

Q2. Where can the eSSL eBS100100C be installed?

A. It is suitable for airports, railway stations, logistics centers, shopping malls, government buildings, stadiums, hotels, warehouses, courts, prisons, and exhibition centers.

Q3. What image enhancement features are available?

A. The scanner supports pseudo color imaging, black and white mode, edge enhancement, high and low penetration display, 64x zoom, replay, brightness adjustment, and image restoration for improved threat detection.
