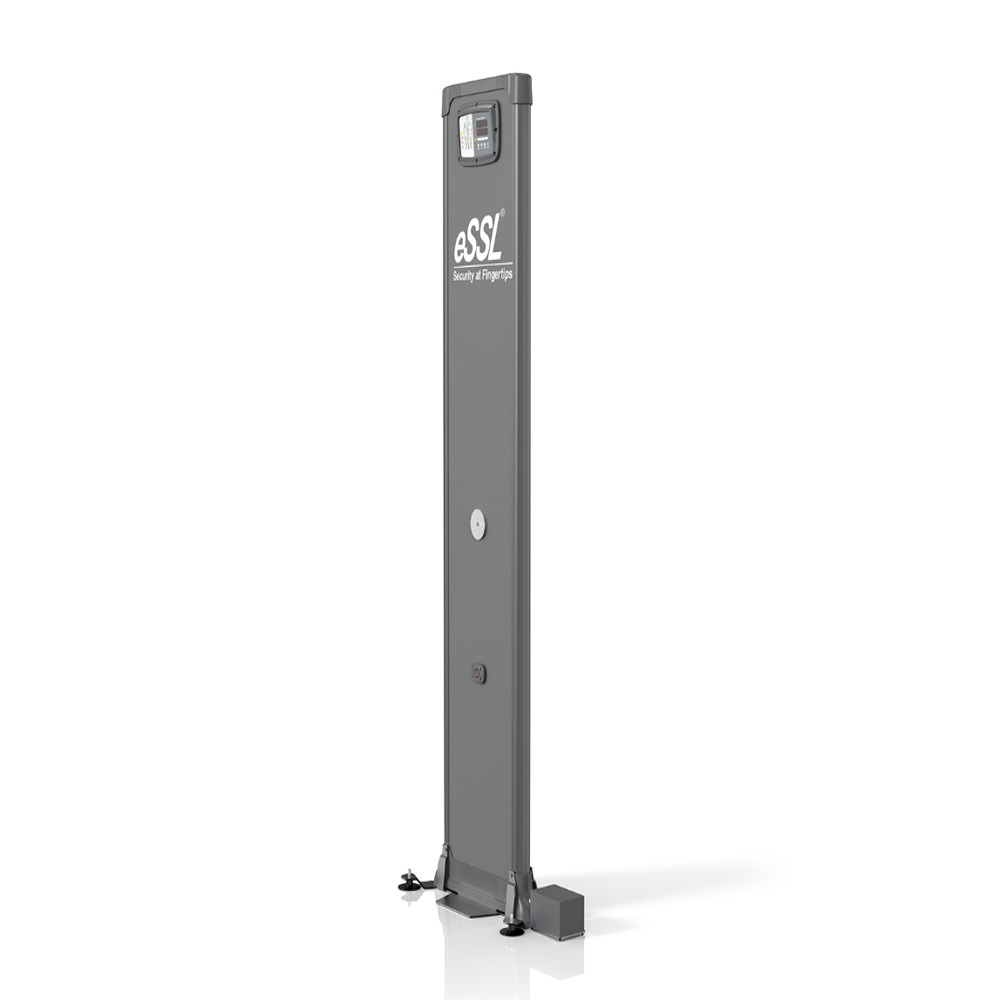

D468-6 6 Zone Single Door Panel Walk through Metal Detector

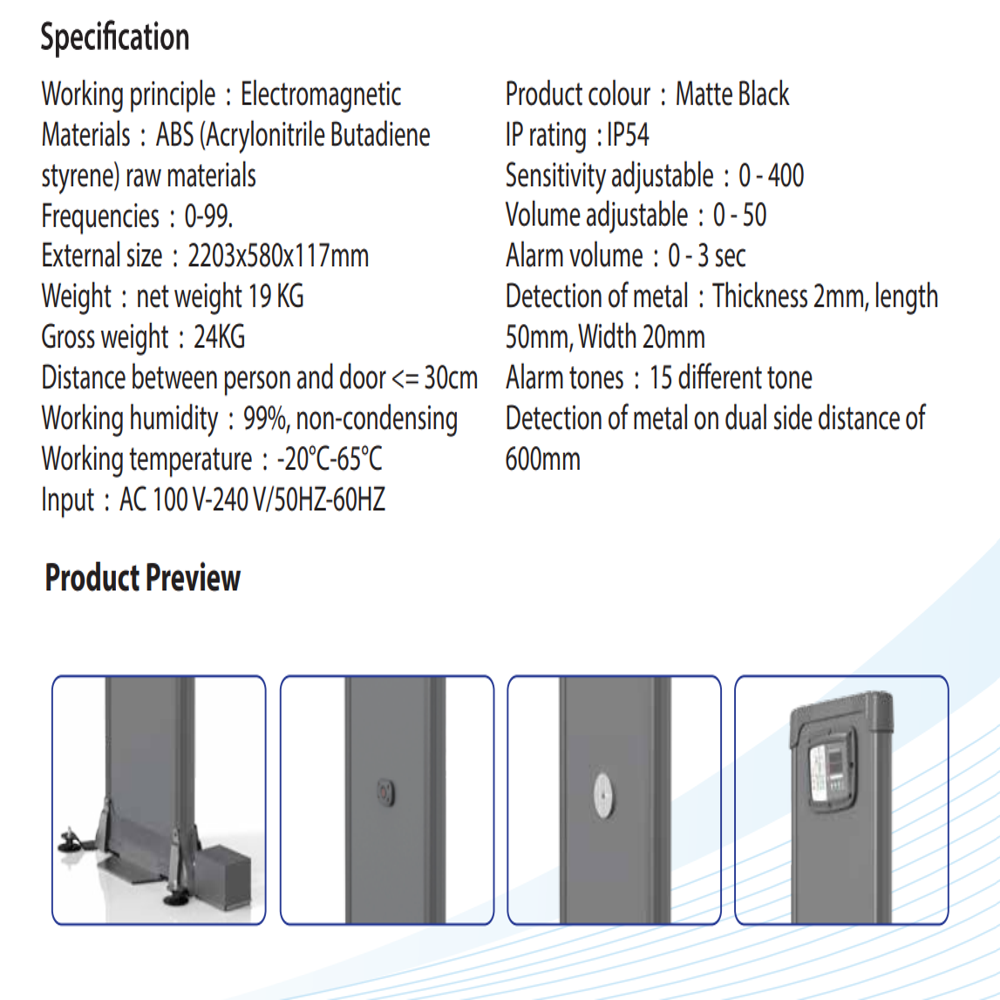

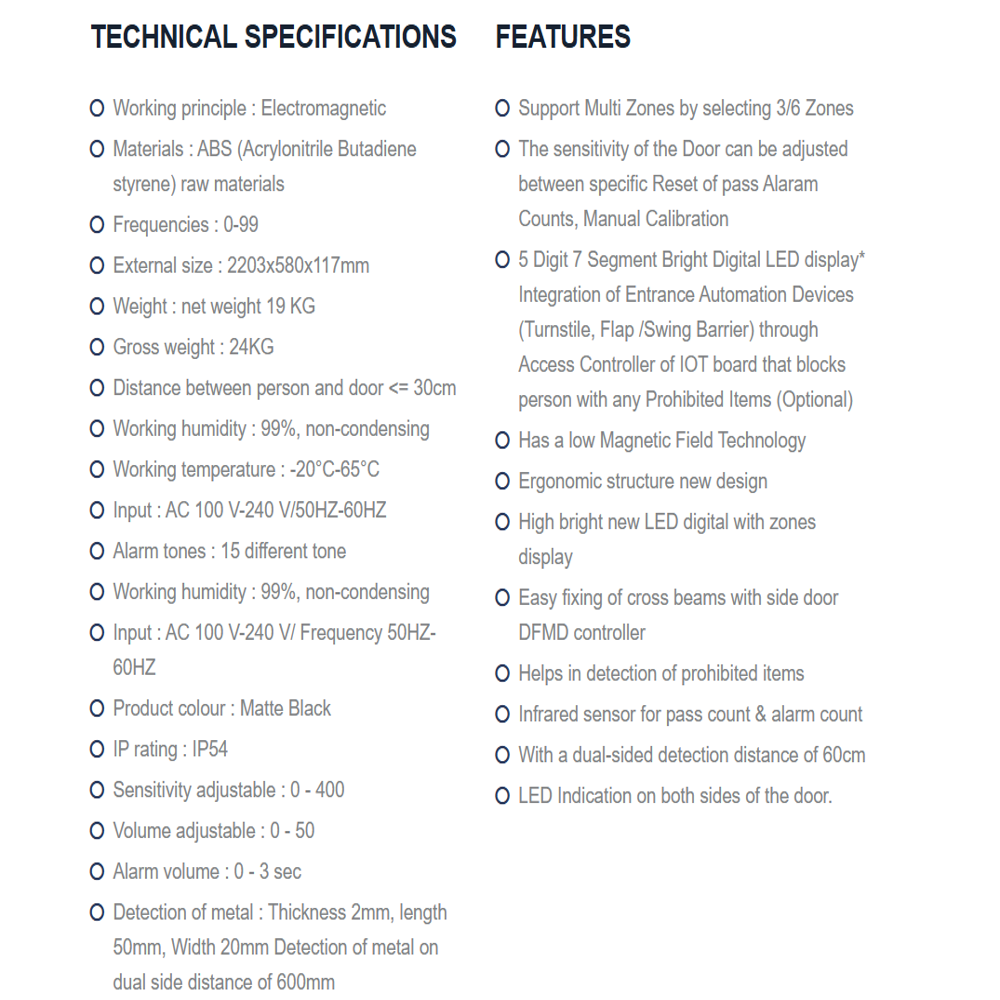

The D468-6 Single Door Panel Walk Through Metal Detector is a compact and efficient security screening solution designed to detect concealed metal objects with high accuracy while occupying minimal installation space. Utilizing advanced electromagnetic detection technology, the detector supports selectable 3 and 6 detection zones, enabling security personnel to identify the approximate location of prohibited metallic objects during screening. Constructed from durable ABS (Acrylonitrile Butadiene Styrene) material and protected with an IP54-rated enclosure, it is suitable for continuous operation in indoor and semi-outdoor environments. The detector features a bright 5-digit 7-segment LED display, dual-side LED indication, low magnetic field technology, and adjustable sensitivity from 0 to 400 levels, making it suitable for a wide range of security applications.

The D468-6 is equipped with intelligent features including infrared sensors for pass count and alarm count, manual calibration, adjustable alarm duration and volume, and 15 selectable alarm tones for flexible operation. It also supports optional integration with entrance automation devices such as turnstiles, flap barriers, and swing barriers through an IoT access controller to enhance access control. With a dual-sided detection distance of up to 60 cm and the ability to detect metal objects measuring 2 mm in thickness, 50 mm in length, and 20 mm in width, this walk-through metal detector is ideal for banks, factories, hotels, offices, theatres, educational institutions, shopping malls, government buildings, and other facilities requiring dependable and space-efficient security screening.

FAQs

Q1. How many detection zones does the D468-6 support?

A. The detector supports selectable 3 and 6 detection zones for improved detection accuracy and object localization.

Q2. Can the D468-6 integrate with access control systems?

A. Yes. It supports optional integration with turnstiles, flap barriers, and swing barriers through an IoT access controller.

Q3. What is the detection range of the D468-6?

A. The detector provides dual-sided metal detection with an effective detection distance of up to 60 cm and features LED indication on both sides of the door.
