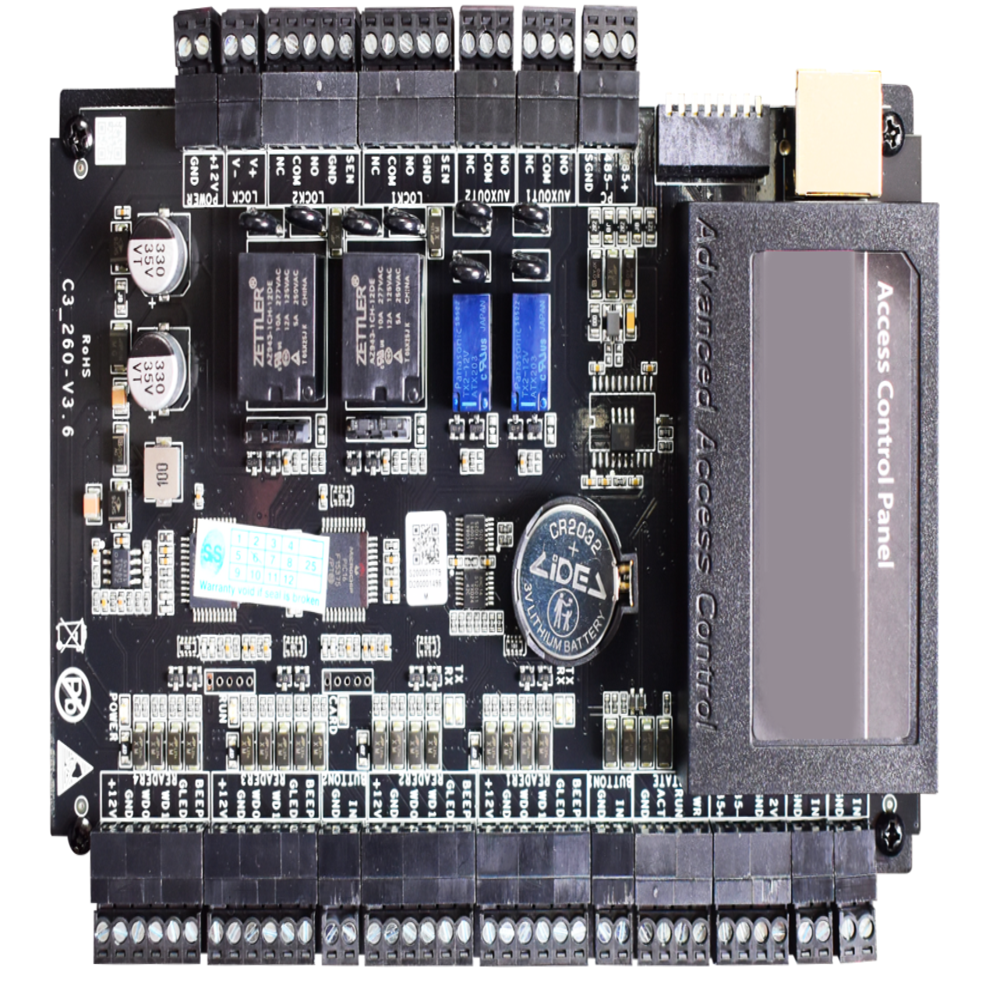

C3-200 Plus Door Access Control

The C3-200 Plus is a two-door Access Control System designed to deliver secure and centralized entry management for commercial buildings, offices, educational institutions, hospitals, industrial facilities, and residential complexes. Powered by a Linux operating system, the controller supports up to four 26-bit Wiegand or RS-485 readers, allowing flexible integration with RFID card readers and QR code readers. It offers a default storage capacity of 30,000 card users, which can be expanded up to 100,000 with an official license, along with a transaction capacity of 500,000 records. TCP/IP connectivity enables efficient communication with centralized management software, making it suitable for organizations that require reliable and scalable access control across multiple entry points.

Designed for advanced security applications, the C3-200 Plus features 256 time zones, 256 access levels, holiday management, anti-passback, global anti-passback, interlock, linkage functions, multi-card opening, remote door opening and closing, and multiple verification methods. The controller provides six input ports for exit devices, door status monitoring, and auxiliary inputs, along with four relay outputs for door locks and auxiliary devices. It integrates with compatible web-based management software and supports PGSQL, MSSQL, and Oracle databases for efficient user administration and event monitoring. With its wall-mounted design, dependable performance, and flexible connectivity, the C3-200 Plus is an excellent Access Control System for organizations seeking secure, expandable, and network-enabled access management solutions.

FAQs

Q1. How many doors can the C3-200 Plus control?

The controller is designed to manage up to two doors and supports multiple readers for flexible entry and exit configurations.

Q2. Does the controller support network connectivity?

Yes. It supports TCP/IP communication for centralized management, real-time monitoring, and remote administration through compatible software.

Q3. What is the maximum card capacity?

The controller supports 30,000 cards by default and can be expanded up to 100,000 users with an official license. It can also store up to 500,000 transaction records.
